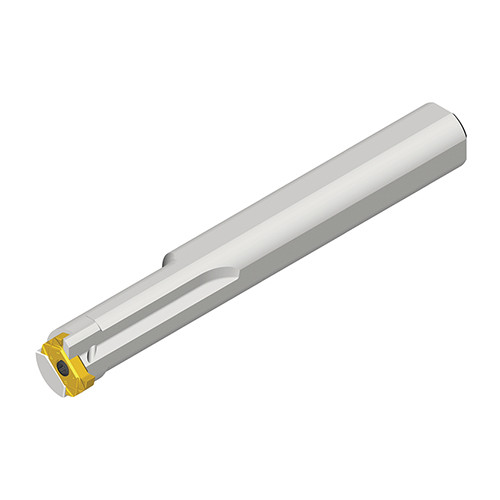

Boring bars for internal shallow grooving on small diameter with coolant hole & TQIS 14-4 corner inserts
Additional information
Weight
0.2000 kg
Dimensions
barcode
Additional Information

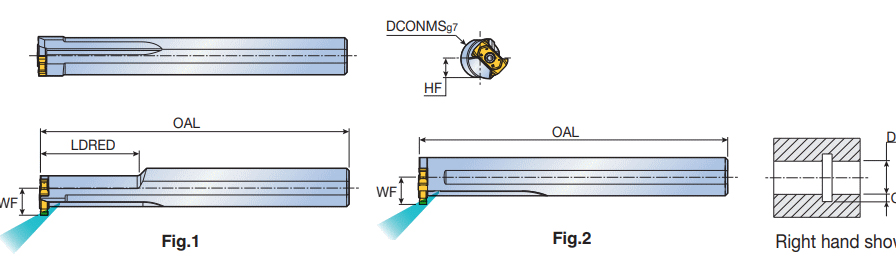

Connection Diameter Machine Side (DCONMS): 16 mm
Functional Width (WF): 11 mm
Minimum Bore Diameter (DMIN): 20 mm
Body Material: Steel
Reduced Body Diameter Length (LDRED): –
Measurement Type: Metric
Cutting Direction (HAND): Left Hand
Overall Length (OAL): 125 mm
Application:, Int. Groove & Turn, Int. Grooving, Tools for Swiss Machines, Unit: M
