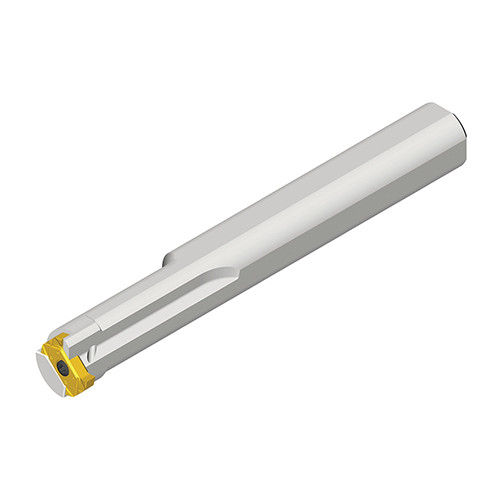

Boring bars for internal shallow grooving on small diameter with coolant hole & TQIS 14-4 corner inserts
Additional information
Weight
1.2400 kg
Dimensions
barcode

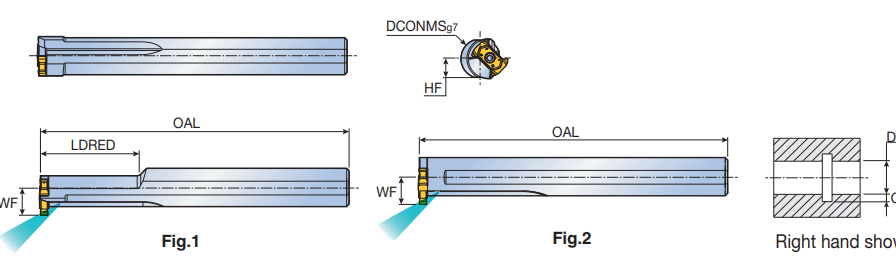

Additional Information
Connection Diameter Machine Side (DCONMS): 32 mm
Functional Width (WF): 19 mm
Minimum Bore Diameter (DMIN): 36 mm
Body Material: Steel
Reduced Body Diameter Length (LDRED): –
Measurement Type: Metric
Cutting Direction (HAND): Left Hand
Overall Length (OAL): 200 mm
Application:, Int. Groove & Turn, Int. Grooving, Tools for Swiss Machines, Unit: M
