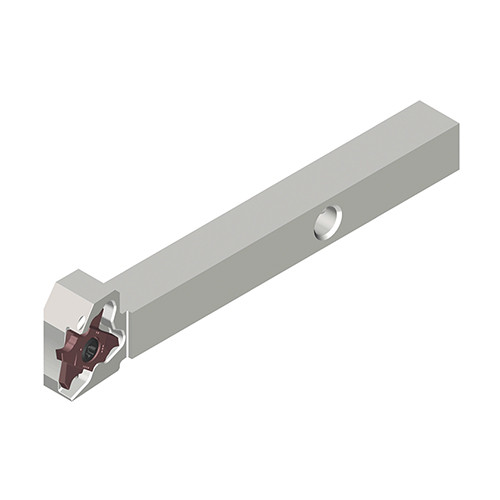

Taegutec TQHL 12-20-TB

Description

Parting, grooving and next to the shoulder machining high-pressure coolant holders with TQS/J small size inserts in swiss

Weight	0.2000 kg
Dimensions	Length 12cm x Width cm x Depth cm
barcode

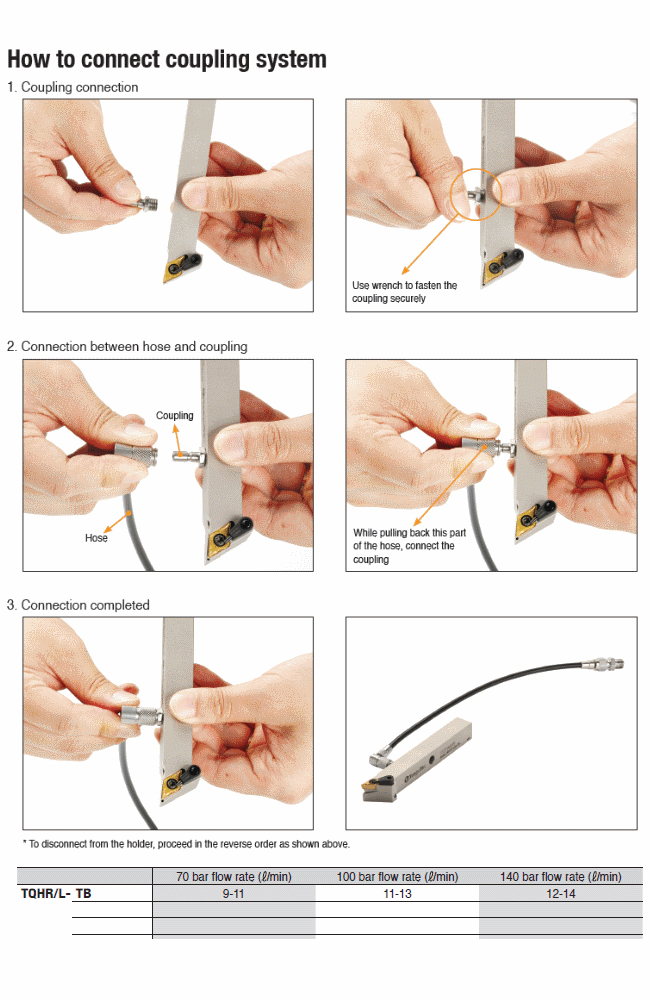

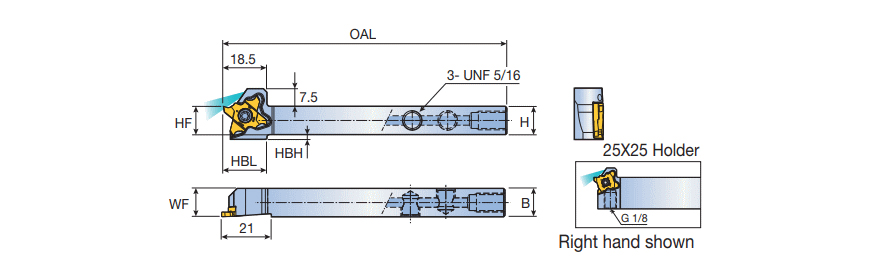

Additional Information	Shank Height (H): 12 mm Cutting Direction (HAND): Left Hand Shank Width (B): 12 mm Measurement Type: Metric Cutting Width Minimum (CWN): 0.5 mm Insert Seat Size Code (SSC): 20 Cutting Width Maximum (CWX): 3 mm Master Insert Identification (MIID): ‎TQS 20-2.00-0.10-L Overall Length (OAL): 120 mm Functional Width (WF): 12 mm Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Ext. Threading (Groove Turn), Parting, Tools for Swiss Machines, Coolant Entry Thread Size (CNT): UNF 5/16 Body Material: Steel Head Bottom Offset Height (HBH): 2 mm Work Piece Parting Diameter Maximum (CUTDIA): 20 Unit: M
