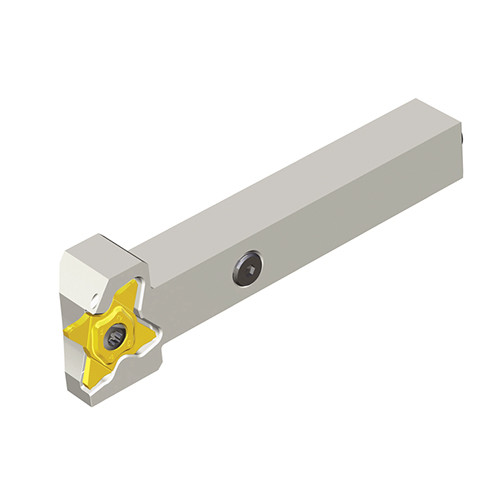

Taegutec TQHL 12-27-TB

Shank Height (H): 12 mm
Work Piece Parting Diameter Maximum (CUTDIA): 27
Shank Width (B): 12 mm
Cutting Direction (HAND): Left Hand
Cutting Width Minimum (CWN): 0.5 mm
Measurement Type: Metric
Cutting Width Maximum (CWX): 5.3 mm
Insert Seat Size Code (SSC): 27
Overall Length (OAL): 120 mm
Master Insert Identification (MIID): ‎TQJ 27-2.00-0.10
Head Length (LH): 24 mm
Coolant Entry Thread Size (CNT): UNF 5/16
Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Ext. Threading (Groove Turn), Parting, Unit: M
Body Material: Steel
