Home » Shop » CUTTING TOOLS » Carbide » PARTING OFF & GROOVING » Taegutec TQHL 16-34-TB
$321.94$292.67 Ex. GST

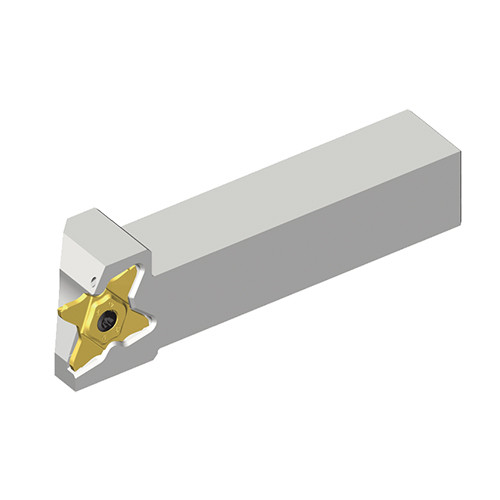

External holders for parting & deep grooving with TQ. 34 inserts and high pressure coolant

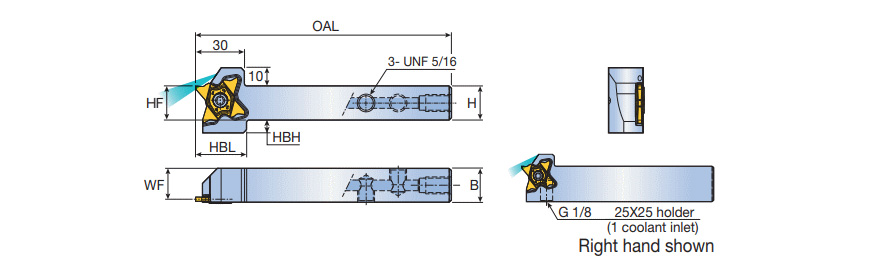

Shank Height (H): 16 mm Cutting Direction (HAND): Left Hand Shank Width (B): 16 mm Measurement Type: Metric Cutting Width Minimum (CWN): 1.5 mm Insert Seat Size Code (SSC): 34 Cutting Width Maximum (CWX): 4 mm Master Insert Identification (MIID): ‎TQC 34-2.00-0.20 Overall Length (OAL): 135 mm Functional Width (WF): 14.2 mm Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Parting, Coolant Entry Thread Size (CNT): UNF 5/16 Body Material: Steel Head Bottom Offset Height (HBH): 12 mm Work Piece Parting Diameter Maximum (CUTDIA): 34 Unit: M
