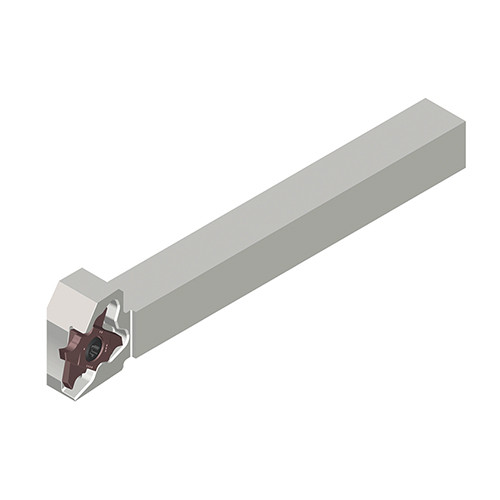

Taegutec TQHL 20-20

Description

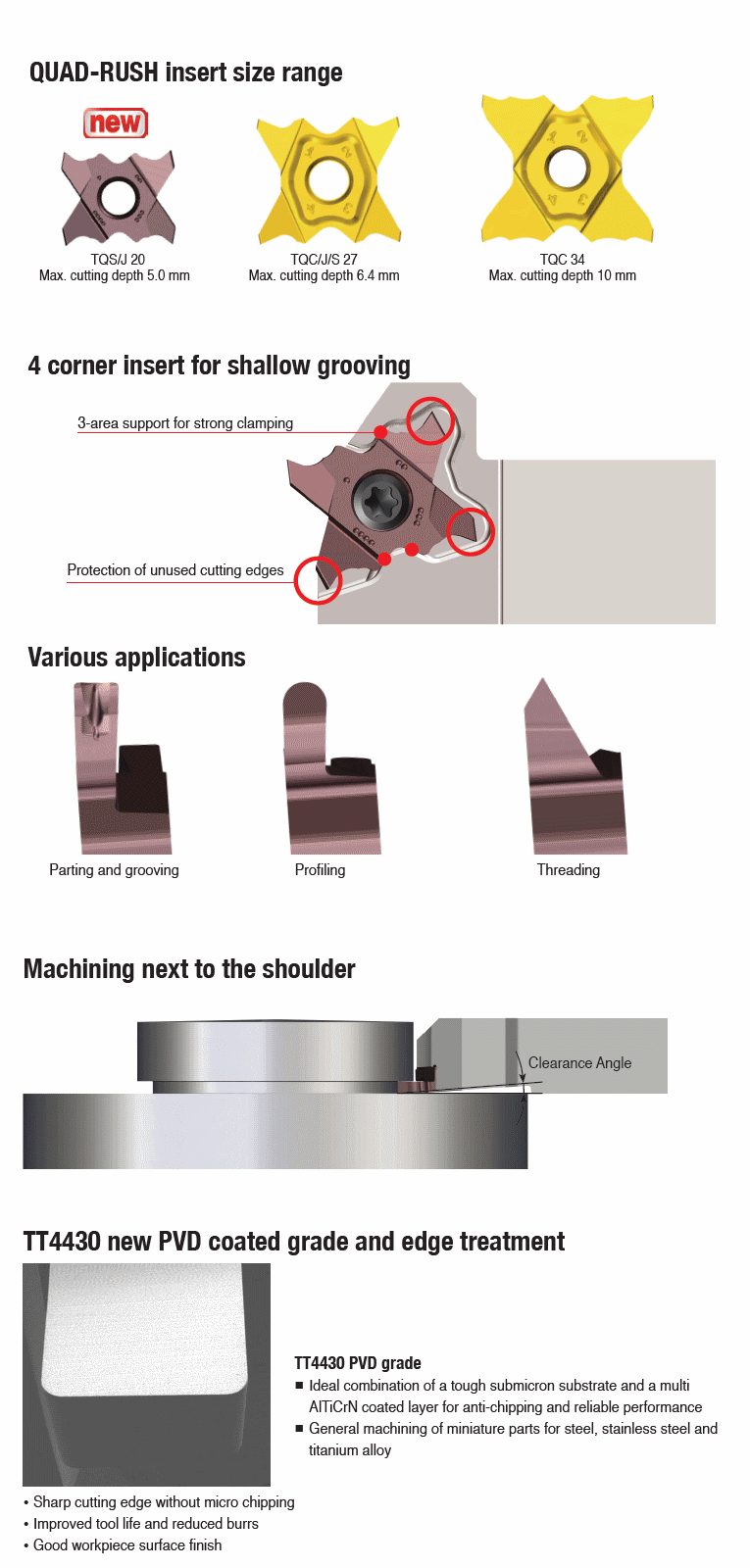

External holders for parting, grooving and next to the shoulder machining with TQS/J 20 small size inserts in swiss turn

Weight	0.4050 kg
Dimensions	Length 12cm x Width cm x Depth cm
barcode

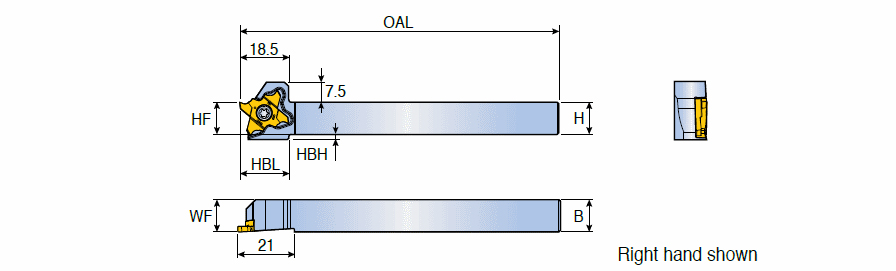

Additional Information	Shank Height (H): 20 mm Cutting Direction (HAND): Left Hand Shank Width (B): 20 mm Measurement Type: Metric Cutting Width Minimum (CWN): 0.5 mm Insert Seat Size Code (SSC): 20 Cutting Width Maximum (CWX): 3 mm Master Insert Identification (MIID): ‎TQS 20-2.00-0.10-L Overall Length (OAL): 120 mm Functional Width (WF): 20 mm Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Ext. Threading (Groove Turn), Parting, Tools for Swiss Machines, Head Bottom Offset Height (HBH): – Body Material: Steel Unit: M Work Piece Parting Diameter Maximum (CUTDIA): 20
