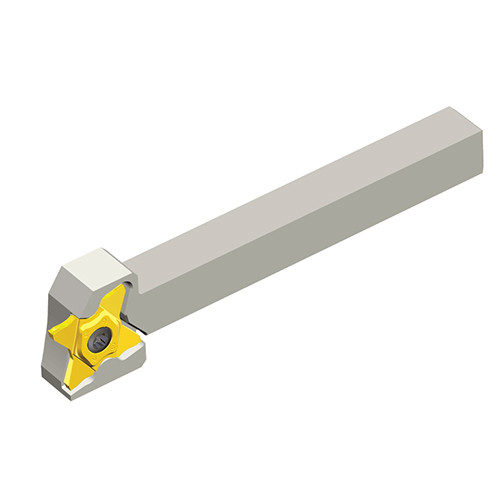

Taegutec TQHL 20-27

Description

External holders of Parting & Grooving with TQ. 27 inserts

Weight	0.4300 kg
Dimensions	Length 12cm x Width cm x Depth cm
barcode
Additional Information	Shank Height (H): 20 mm Body Material: Steel Shank Width (B): 20 mm Work Piece Parting Diameter Maximum (CUTDIA): 27 Cutting Width Minimum (CWN): 0.5 mm Cutting Direction (HAND): Left Hand Cutting Width Maximum (CWX): 5.3 mm Measurement Type: Metric Overall Length (OAL): 120 mm Insert Seat Size Code (SSC): 27 Head Length (LH): 24 mm Master Insert Identification (MIID): ‎TQJ 27-2.00-0.10 Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Ext. Threading (Groove Turn), Parting, Unit: M
