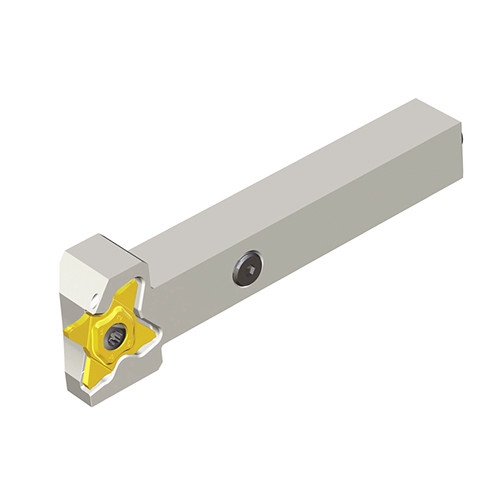

Taegutec TQHL 25-27-TB

Description

External holders of Parting & Grooving with TQ. 27 inserts with high pressure coolant

Weight	0.6800 kg
Dimensions	Length 13.5cm x Width cm x Depth cm
barcode
Additional Information	Shank Height (H): 25 mm Work Piece Parting Diameter Maximum (CUTDIA): 27 Shank Width (B): 25 mm Cutting Direction (HAND): Left Hand Cutting Width Minimum (CWN): 0.5 mm Measurement Type: Metric Cutting Width Maximum (CWX): 5.3 mm Insert Seat Size Code (SSC): 27 Overall Length (OAL): 135 mm Master Insert Identification (MIID): ‎TQJ 27-2.00-0.10 Head Length (LH): – Coolant Entry Thread Size (CNT): G1/8 BSPP Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Ext. Threading (Groove Turn), Parting, Unit: M Body Material: Steel
