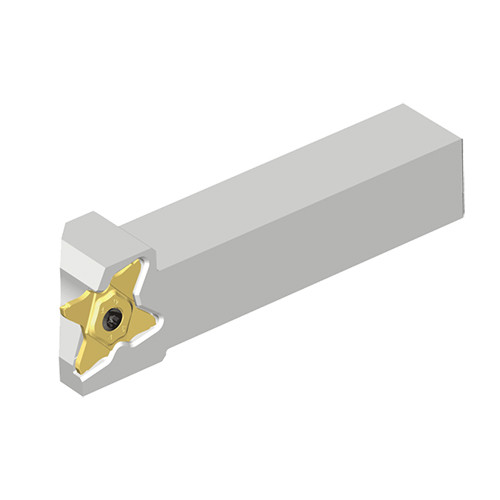

Taegutec TQHL 32-34

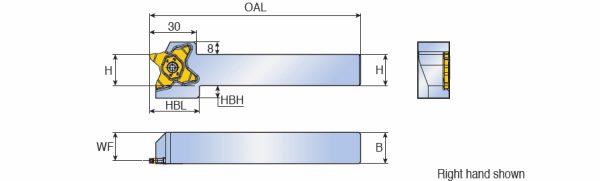

Shank Height (H): 32 mm
Cutting Direction (HAND): Left Hand
Shank Width (B): 32 mm
Measurement Type: Metric
Cutting Width Minimum (CWN): 1.5 mm
Insert Seat Size Code (SSC): 34
Cutting Width Maximum (CWX): 4 mm
Master Insert Identification (MIID): ‎TQC 34-2.00-0.20
Overall Length (OAL): 135 mm
Functional Width (WF): 30.2 mm
Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Parting, Head Bottom Offset Height (HBH): –
Body Material: Steel
Unit: M
Work Piece Parting Diameter Maximum (CUTDIA): 34
