Taegutec TQHPL 25-34

Product Code: 6172768

$296.26$269.33 Ex. GST

Product Code: 6172768 SKU 6172768 Categories Carbide, CUTTING TOOLS (HSS & Carbide), PARTING OFF & GROOVING

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

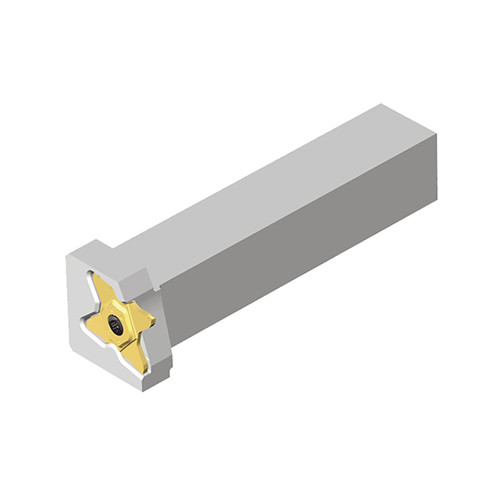

Perpendicular holders for parting & grooving with TQ. 34 inserts

Weight	0.9500 kg
Dimensions	Length 13.5cm x Width cm x Depth cm
barcode

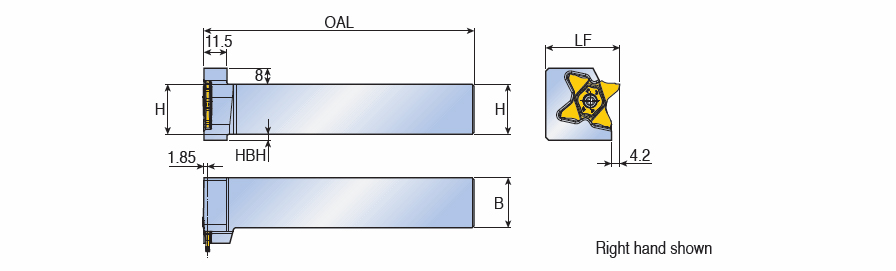

Additional Information	Shank Height (H): 25 mm Work Piece Parting Diameter Maximum (CUTDIA): 34 Shank Width (B): 25 mm Cutting Direction (HAND): Left Hand Cutting Width Minimum (CWN): 1.5 mm Measurement Type: Metric Cutting Width Maximum (CWX): 4 mm Insert Seat Size Code (SSC): 34 Overall Length (OAL): 135 mm Master Insert Identification (MIID): ‎TQC 34-2.00-0.20 Functional Length (LF): 37 mm Head Bottom Offset Height (HBH): 3 mm Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Parting, Unit: M Body Material: Steel
