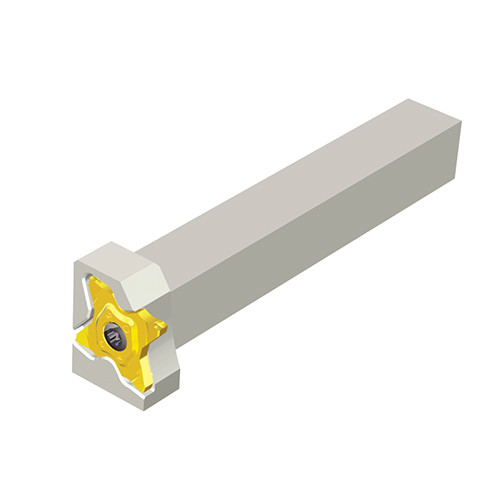

Taegutec TQHPR 16-27

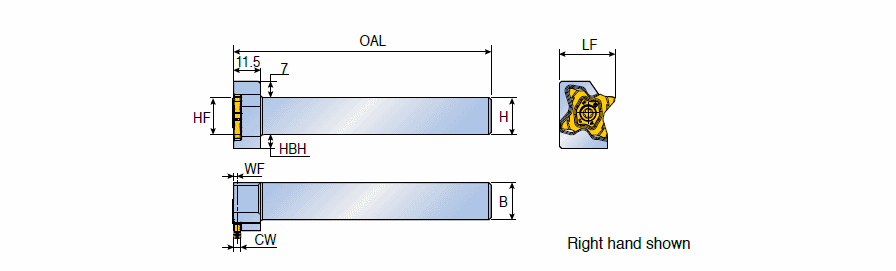

Shank Height (H): 16 mm
Work Piece Parting Diameter Maximum (CUTDIA): 27
Shank Width (B): 16 mm
Cutting Direction (HAND): Right Hand
Cutting Width Minimum (CWN): 0.5 mm
Measurement Type: Metric
Cutting Width Maximum (CWX): 5.3 mm
Insert Seat Size Code (SSC): 27
Overall Length (OAL): 120 mm
Master Insert Identification (MIID): ‎TQJ 27-2.00-0.10
Functional Length (LF): 24 mm
Functional Width (WF): 1.5 mm
Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Ext. Threading (Groove Turn), Parting, Head Bottom Offset Height (HBH): 6 mm
Body Material: Steel
Unit: M
