Home » Shop » CUTTING TOOLS » Carbide » PARTING OFF & GROOVING » Taegutec TQHPR 25-34
$296.26$269.33 Ex. GST

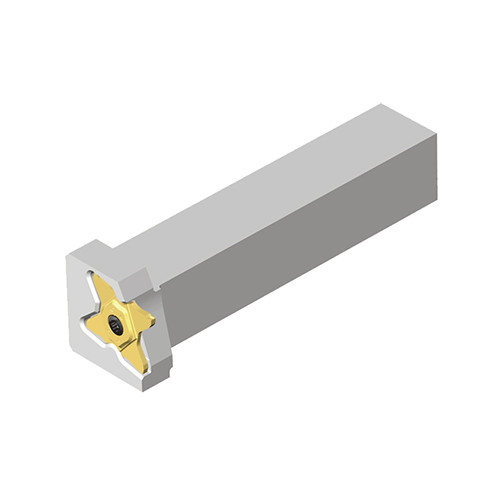

Perpendicular holders for parting & grooving with TQ. 34 inserts

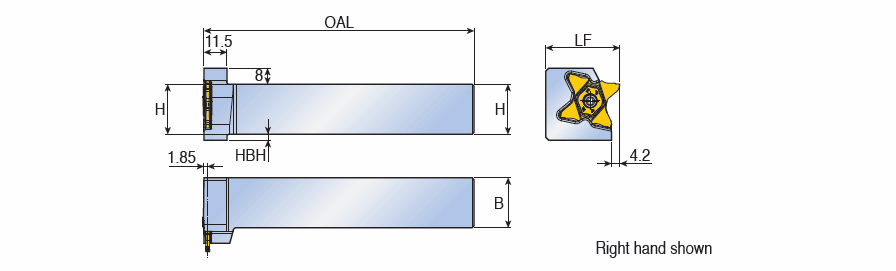

Shank Height (H): 25 mm Work Piece Parting Diameter Maximum (CUTDIA): 34 Shank Width (B): 25 mm Cutting Direction (HAND): Right Hand Cutting Width Minimum (CWN): 1.5 mm Measurement Type: Metric Cutting Width Maximum (CWX): 4 mm Insert Seat Size Code (SSC): 34 Overall Length (OAL): 135 mm Master Insert Identification (MIID): ‎TQC 34-2.00-0.20 Functional Length (LF): 37 mm Head Bottom Offset Height (HBH): 3 mm Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Parting, Unit: M Body Material: Steel
