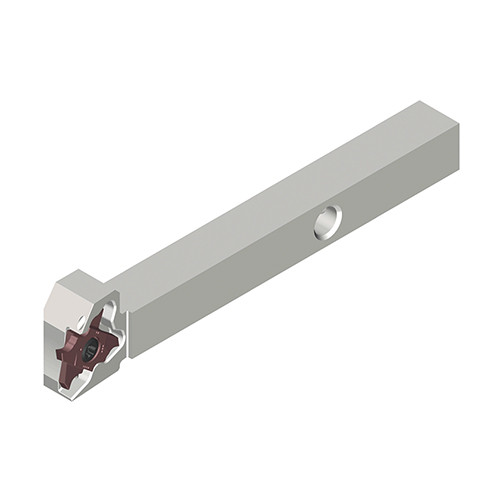

Home » Shop » CUTTING TOOLS » Carbide » PARTING OFF & GROOVING » Taegutec TQHR 16-20-TB
$321.94$292.67 Ex. GST
Parting, grooving and next to the shoulder machining high-pressure coolant holders with TQS/J small size inserts in swiss

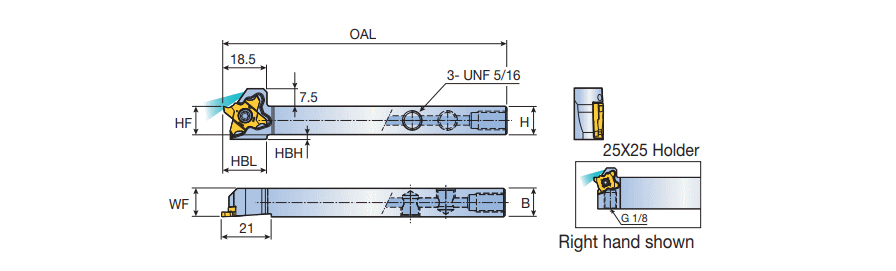

Shank Height (H): 16 mm Cutting Direction (HAND): Right Hand Shank Width (B): 16 mm Measurement Type: Metric Cutting Width Minimum (CWN): 0.5 mm Insert Seat Size Code (SSC): 20 Cutting Width Maximum (CWX): 3 mm Master Insert Identification (MIID): ‎TQS 20-2.00-0.10-R Overall Length (OAL): 120 mm Functional Width (WF): 16 mm Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Ext. Threading (Groove Turn), Parting, Tools for Swiss Machines, Coolant Entry Thread Size (CNT): UNF 5/16 Body Material: Steel Head Bottom Offset Height (HBH): – Work Piece Parting Diameter Maximum (CUTDIA): 20 Unit: M
