Taegutec TQS 27-4WT-0.05 TT9080

Product Code: 6126251

$66.13$60.12 Ex. GST

Product Code: 6126251 SKU 6126251 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

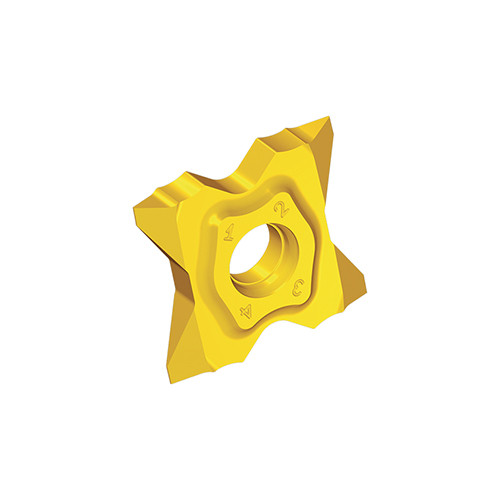

Inserts with 4 cutting edge for Partial profile 55° of external threading

Additional information

Weight 0.0157 kg
barcode
Additional Information

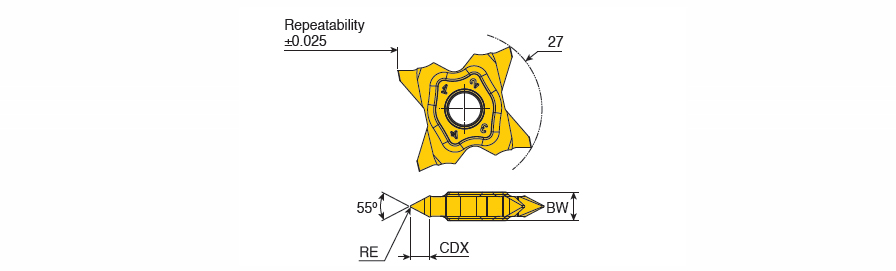

Corner Radius (RE): 0.05 mm
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Cutting Width (CW): 4 mm
Cutting Edge Length (L): 2.9 mm
Grade: TT9080
Threads per Inch Maximum (TPIX): 54
Coating: TiAlN+TiN
Threads per Inch Minimum (TPIN): 10
Cutting Edge Material: Carbide
Measurement Type: Metric
Cutting Direction (HAND): Neutral
Body Material: Carbide
Angle: 0.1 Degrees
Unit: M
Application:, Ext. Threading (Groove Turn), Inserts

Brand

Taegutec
