Taegutec TR13-F-25-8.0-R0.4 TT5525

Product Code: 6321200

$203.30$184.82 Ex. GST

Product Code: 6321200 SKU 6321200 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

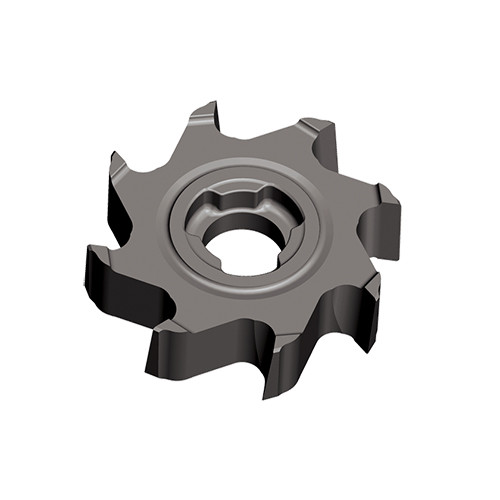

Interchangeable solid carbide heads for face milling and 90° shouldering

Weight	0.0040 kg
barcode

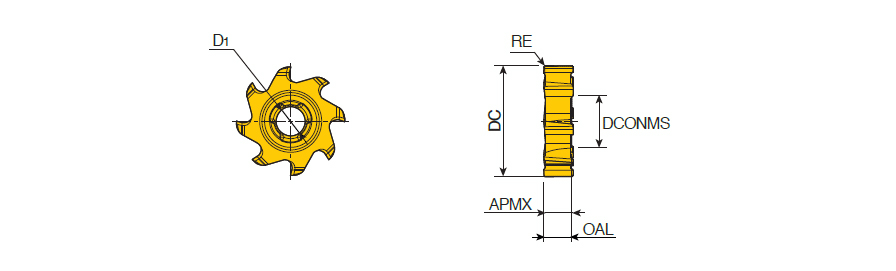

Additional Information	Application:, Bottom Shouldering, Facing, Shouldering, Solid Carbide End Mills, Grade: TT5525 Cutting Diameter (DC): 24.25 mm Coating: AlTiCrN Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Measurement Type: Metric Flute Count (NOF): 6 Cutting Edge Material: Carbide Corner Radius (RE): 0.4 mm Protruding Length (LPR): 8 mm Depth of Cut Maximum (APMX): 8 mm Body Material: Carbide Connection Diameter Machine Side (DCONMS): 13 mm Unit: M
