Taegutec TR15-S-31.7-6.0R0.4TT5525

Product Code: 6311133

$222.98$202.71 Ex. GST

Product Code: 6311133 SKU 6311133 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

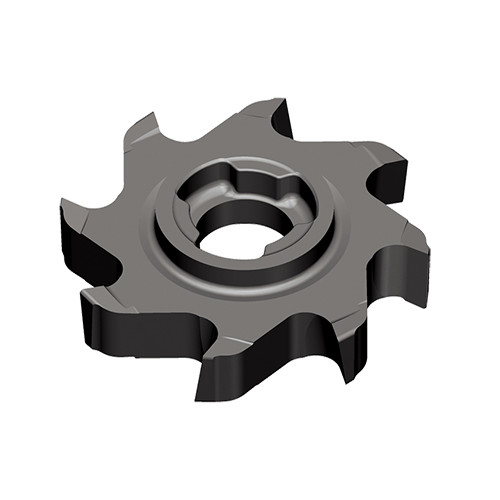

‎Interchangeable solid carbide Slot milling heads for slotting of various widths 3.0 – 10.0 mm with 6 to 10 flutes

Weight	0.0540 kg
barcode

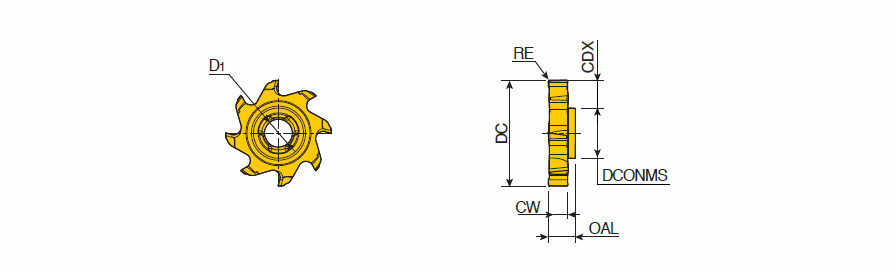

Additional Information	Application:, Bottom Shouldering, Side Slotting, Solid Carbide End Mills, T Slotting, Grade: TT5525 Cutting Diameter (DC): 31.7 mm Coating: AlTiCrN Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Measurement Type: Metric Flute Count (NOF): 8 Cutting Edge Material: Carbide Corner Radius (RE): 0.4 mm Protruding Length (LPR): 8 mm Cutting Depth Maximum (CDX): 8 mm Body Material: Carbide Cutting Width (CW): 6 mm Unit: M Connection Diameter Machine Side (DCONMS): 15 mm
