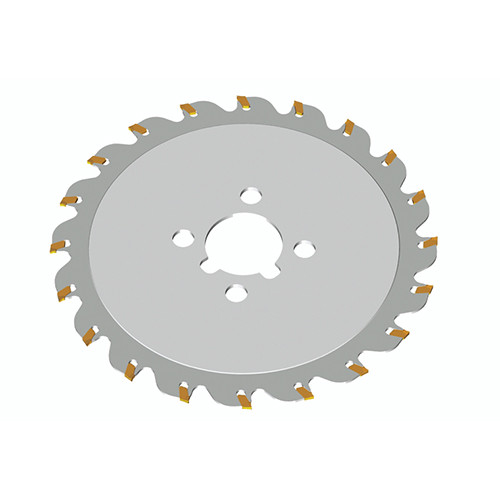

Slotting cutters with single ended & self-clamped inserts
Additional information
Weight
0.1200 kg
barcode
Additional Information
Cutting Diameter (DC): 100 mm
Flute Count (NOF): 6
Cutting Depth Maximum (CDX): 27 mm
Application:, Side Slotting, Slitting, Connection Diameter Machine Side (DCONMS): 22 mm
Measurement Type: Metric
Hub Diameter (DHUB): –
Body Material: Steel
Cutting Width Maximum (CWX): 4.52 mm
Unit: M
Cutting Width Minimum (CWN): 3.54 mm
