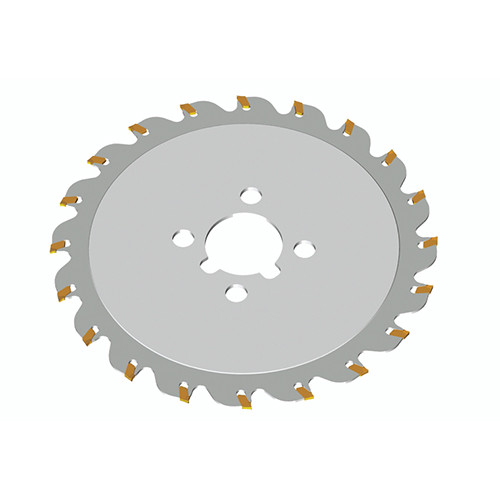

Slotting cutters with single ended & self-clamped inserts
Additional information
Weight
0.1500 kg
barcode

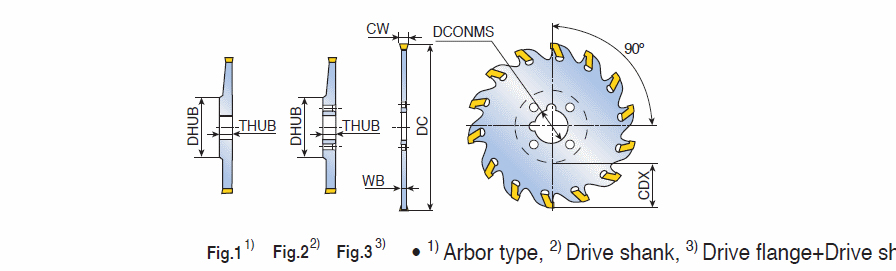

Additional Information
Cutting Diameter (DC): 125 mm
Flute Count (NOF): 8
Cutting Depth Maximum (CDX): 34 mm
Application:, Side Slotting, Slitting, Connection Diameter Machine Side (DCONMS): 32 mm
Measurement Type: Metric
Hub Diameter (DHUB): –
Body Material: Steel
Cutting Width Maximum (CWX): 3.53 mm
Unit: M
Cutting Width Minimum (CWN): 2.8 mm
