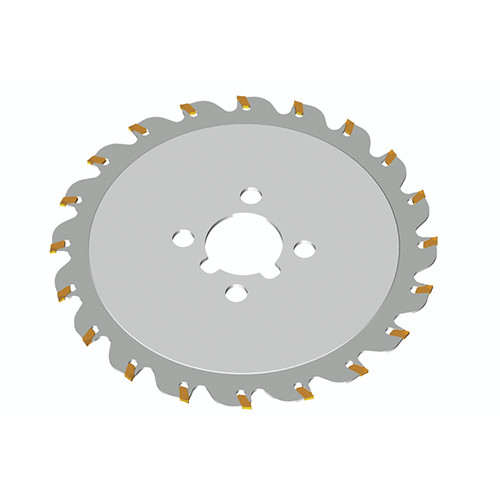

Slotting cutters with single ended & self-clamped inserts
Additional information
Weight
0.1100 kg
barcode
Additional Information

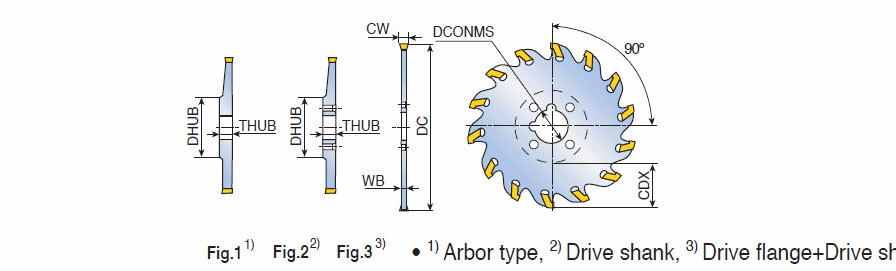

Cutting Diameter (DC): 75 mm
Flute Count (NOF): 8
Cutting Depth Maximum (CDX): 18 mm
Application:, Side Slotting, Slitting, Connection Diameter Machine Side (DCONMS): 22 mm
Measurement Type: Metric
Hub Diameter (DHUB): 39 mm
Body Material: Steel
Cutting Width Maximum (CWX): 1.6 mm
Unit: M
Cutting Width Minimum (CWN): 1.6 mm
