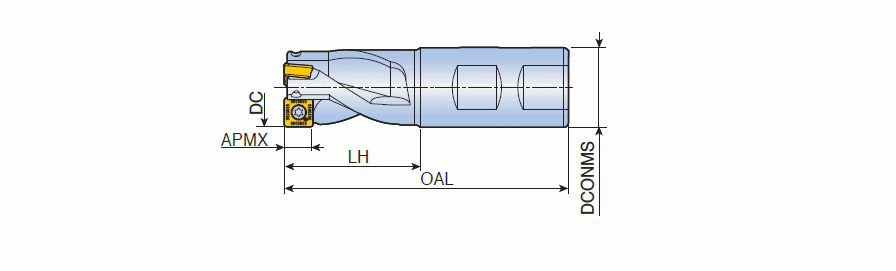

Cutting Diameter (DC/DCX): 20 mm
Connection Diameter Machine Side (DCONMS): 20 mm
Cutting Diameter (DC): 20 mm
Master Insert Identification (MIID): XOMT 060204
Cutting Item Count (CICT): 3
Head Length (LH): 25 mm
Depth of Cut Maximum (APMX): 5.6 mm
Measurement Type: Metric
Overall Length (OAL): 100 mm
Body Material: Steel
Shank Type: Weldon
Unit: M
Application:, Counter Boring, Facing, Shouldering, Side Plunging, Slotting
