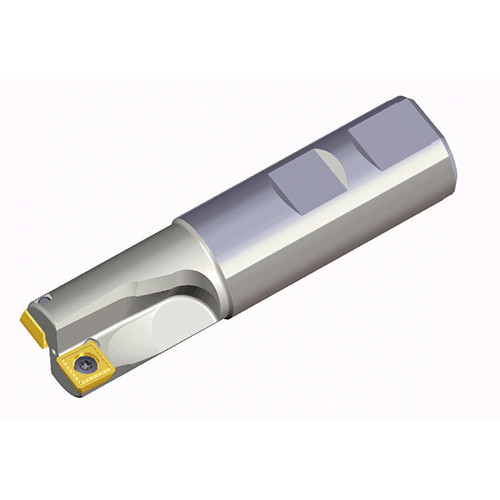

Spot facing end mills with SPMT and SPMG 09/11/14 milling inserts
Additional information
Weight
1.1150 kg
Dimensions
barcode
Additional Information

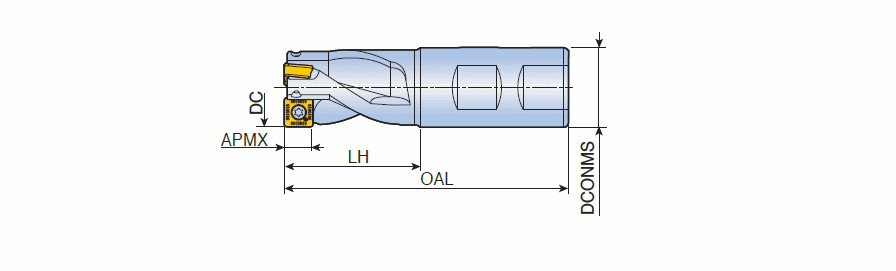

Cutting Diameter (DC/DCX): 50 mm
Connection Diameter Machine Side (DCONMS): 32 mm
Cutting Diameter (DC): 50 mm
Master Insert Identification (MIID): SPMT 140508-EM
Cutting Item Count (CICT): 4
Head Length (LH): 80 mm
Depth of Cut Maximum (APMX): 13.4 mm
Measurement Type: Metric
Overall Length (OAL): 140 mm
Body Material: Steel
Shank Type: Weldon
Unit: M
Application:, Counter Boring, Facing, Shouldering, Side Plunging, Slotting
