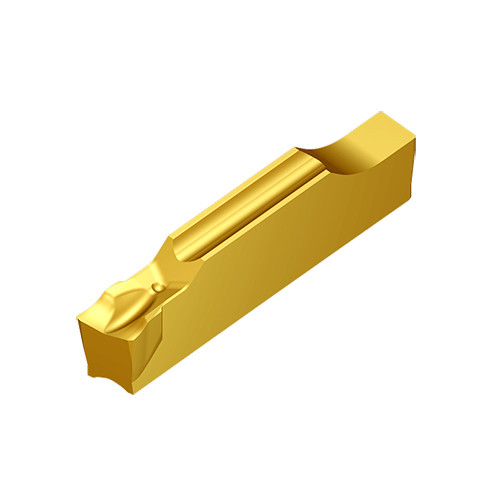

Taegutec TSJ 4-4L TT8020

Product Code: 6308782

$26.14$23.76 Ex. GST

Product Code: 6308782 SKU 6308782 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

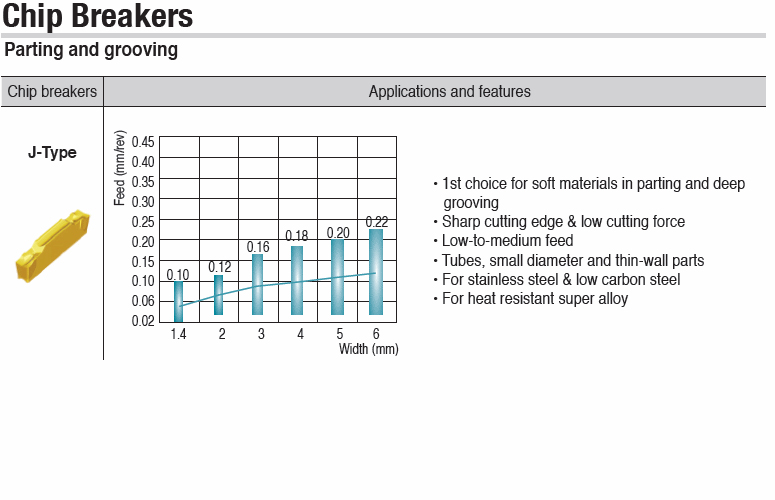

Single-ended inserts with lead angle & J-Type chip breaker for Parting for soft materials, tubes, small diameter & thin-walled parts in low-to-medium feed & low cutting forces & small burrs

Additional information

Weight	0.0051 kg
Dimensions
barcode

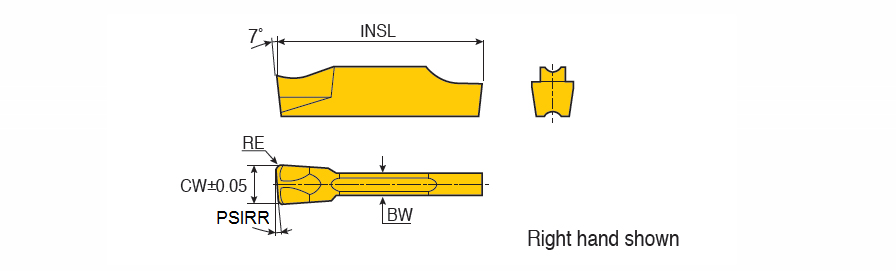

Additional Information	Cutting Width (CW): 4 mm Application:, Inserts, Parting, Corner Radius (RE): 0.3 mm Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Overall Length (OAL): 19.7 mm Height: 4.7 mm Cutting Edge Material: Carbide Measurement Type: Metric Coating: TiCN Body Material: Carbide Grade: TT8020 Unit: M
