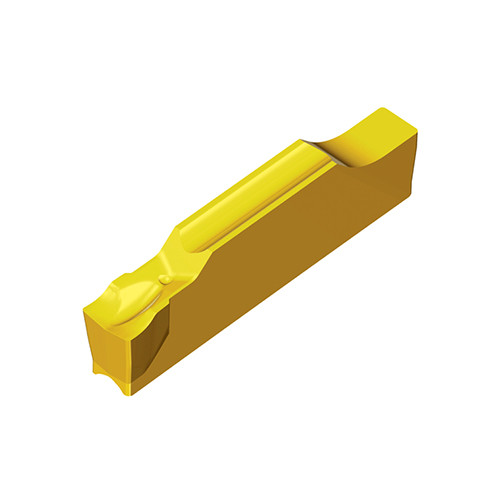

Taegutec TSJ 5 TT7220

Product Code: 6000347

$27.45$24.95 Ex. GST

Product Code: 6000347 SKU 6000347 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

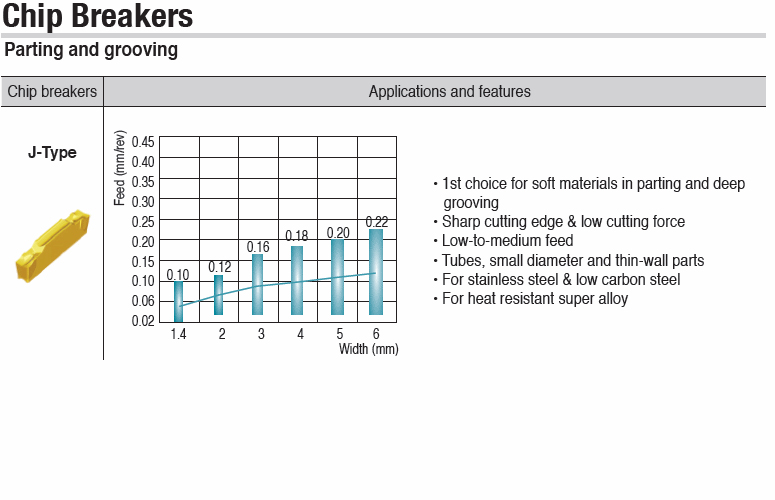

Single-ended inserts with J-Type chip breaker for Parting & Grooving of soft materials, tubes, small diameters & thin-walled parts in low-to-medium feed & low cutting forces & smaller burrs

Additional information

Weight	0.0070 kg
Dimensions
barcode

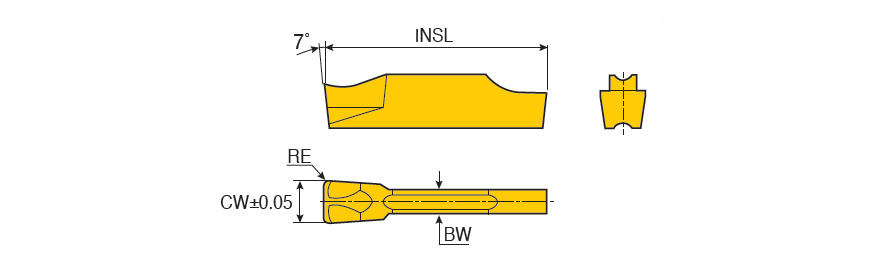

Additional Information	Cutting Width (CW): 5 mm Application:, Ext. Grooving, Face Grooving, Inserts, Int. Grooving, Parting, Corner Radius (RE): 0.3 mm Applicable Material:, Steel, Stainless Steel, Overall Length (OAL): 24.6 mm Height: 5.2 mm Cutting Edge Material: Carbide Measurement Type: Metric Coating: TiCN Body Material: Carbide Grade: TT7220 Unit: M
