Taegutec TSM 080FD-03-22N-Z018

Product Code: 3107910

$1,679.76$1,527.05 Ex. GST

Product Code: 3107910 SKU 3107910 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

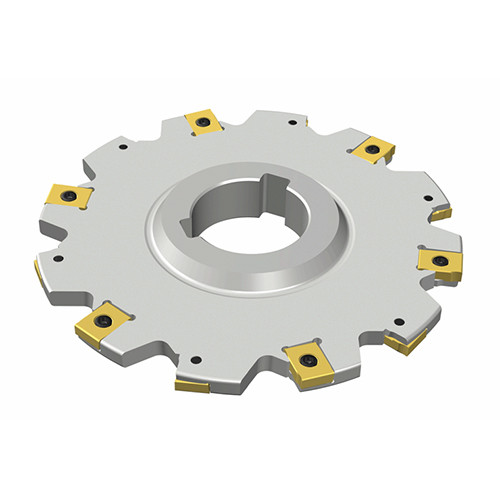

Fixed pocket disc type slotting cutters with ZNHT inserts

Weight	0.6600 kg
barcode

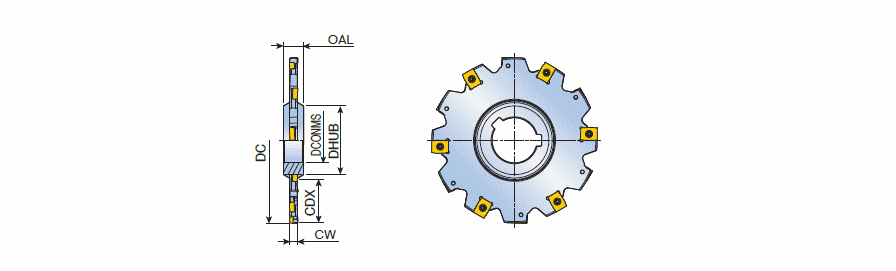

Additional Information	Cutting Diameter (DC): 80 mm Cutting Width (CW): 3 mm Peripheral Effective Cutting Edge Count (ZEFP): 5 Tooth Flute Count (NOF): 10 Cutting Depth Maximum (CDX): 20.5 mm Application:, Bottom Shouldering, Side Slotting, Slitting, Connection Diameter Machine Side (DCONMS): 22 mm Measurement Type: Metric Hub Diameter (DHUB): 34 mm Body Material: Steel Hub Thickness (THUB): 8 mm Unit: M
