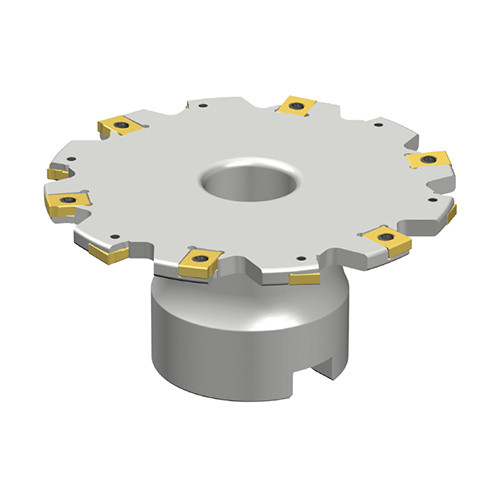

Fixed pocket flange type slotting cutters with ZNHT inserts
Additional information
Weight
0.9700 kg
Dimensions
barcode
Additional Information

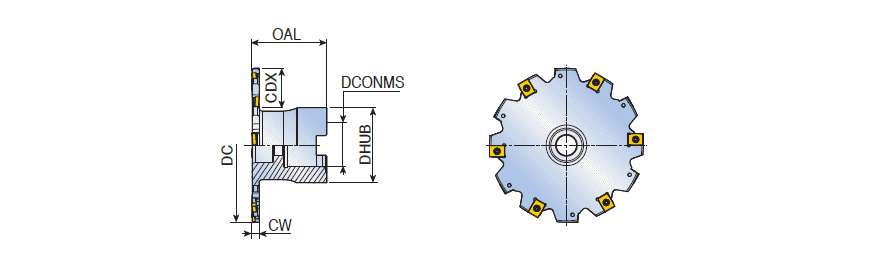

Cutting Diameter (DC): 80 mm
Overall Length (OAL): 50 mm
Peripheral Effective Cutting Edge Count (ZEFP): 5 Tooth
Application:, Bottom Shouldering, Side Slotting, T Slotting, Cutting Depth Maximum (CDX): 20 mm

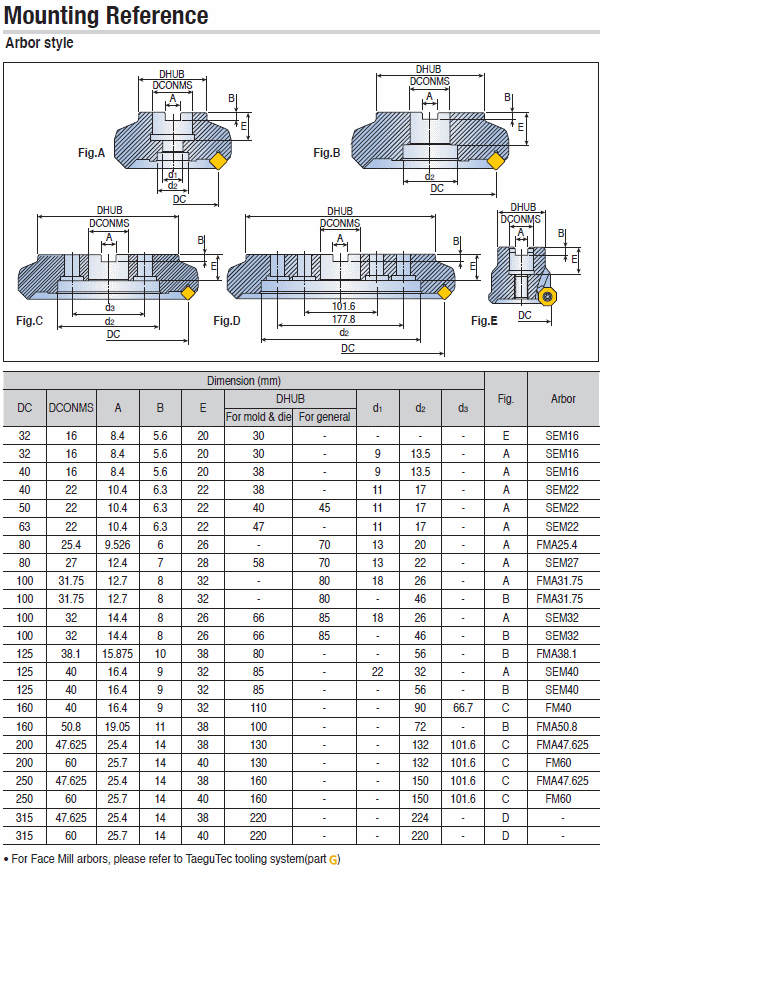

Arbor Style: A
Connection Diameter Machine Side (DCONMS): 22 mm
Measurement Type: Metric
Hub Diameter (DHUB): 40 mm
Body Material: Steel
Cutting Width (CW): 4 mm
Unit: M
Flute Count (NOF): 10
