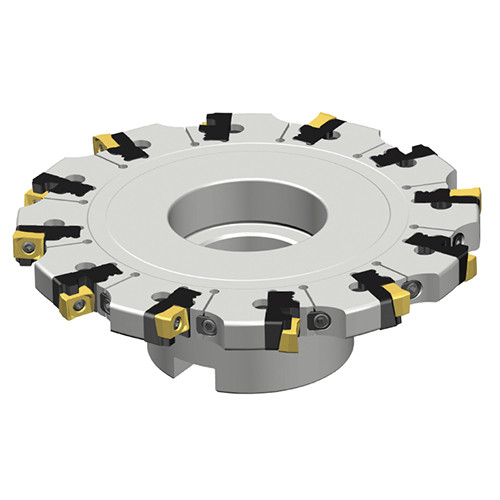

Adjustable slotting cutters with ZNHU inserts in flange type
Additional information
Weight
1.3750 kg
Dimensions
barcode
Additional Information

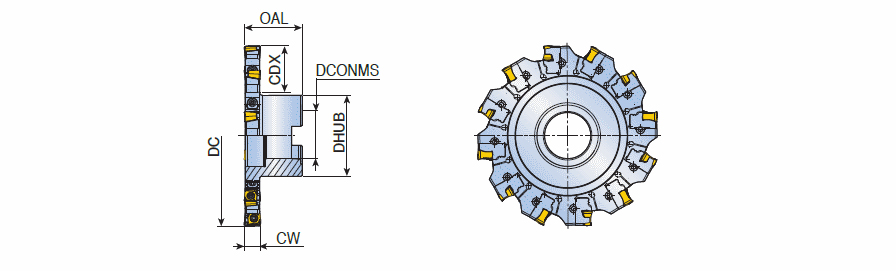

Cutting Diameter (DC): 100 mm
Flute Count (NOF): 8
Peripheral Effective Cutting Edge Count (ZEFP): 4 Tooth
Overall Length (OAL): 50 mm
Cutting Depth Maximum (CDX): 25 mm
Application:, Bottom Shouldering, Side Slotting, T Slotting, Connection Diameter Machine Side (DCONMS): 27 mm

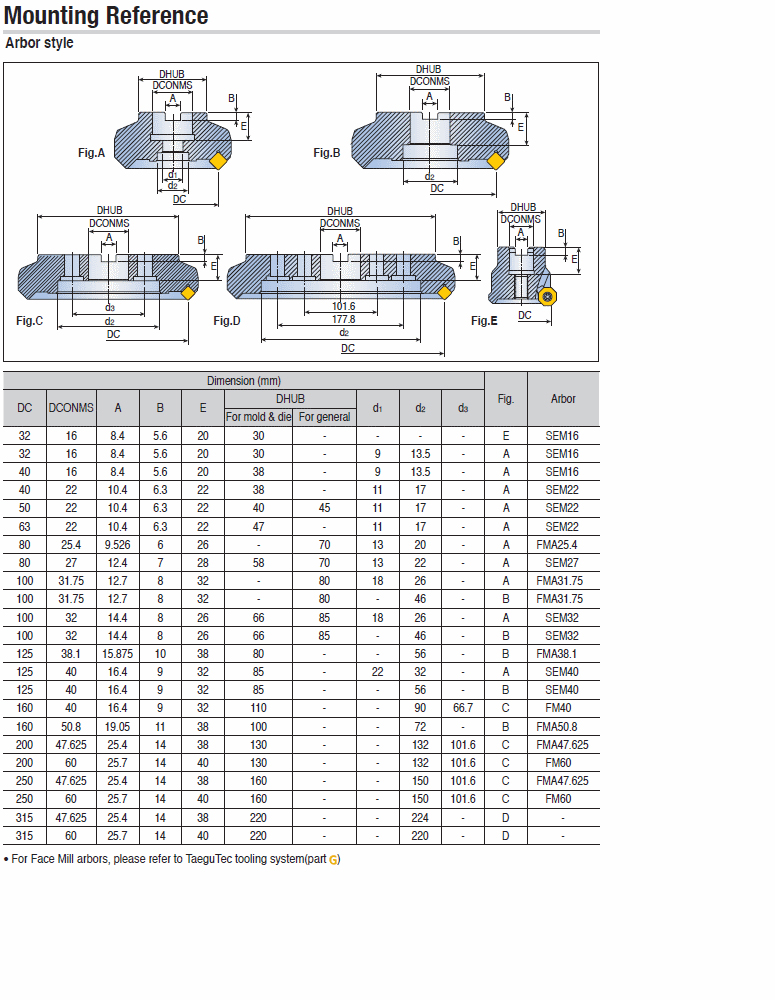

Arbor Style: A
Hub Diameter (DHUB): 48 mm
Measurement Type: Metric
Cutting Width Maximum (CWX): 14 mm
Body Material: Steel
Cutting Width Minimum (CWN): 12 mm
Unit: M
