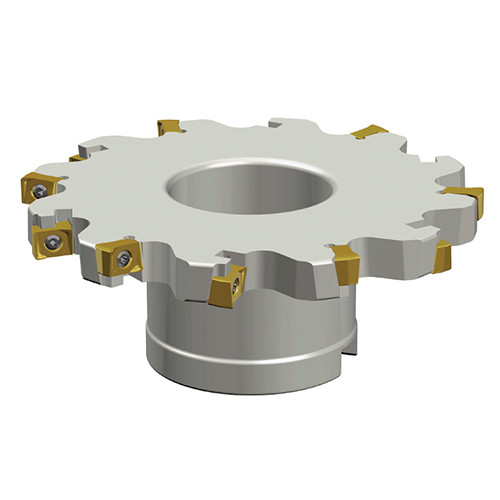

Fixed pocket flange type slotting cutters with ZNHU inserts
Additional information
Weight
2.2850 kg
Dimensions
barcode
Additional Information

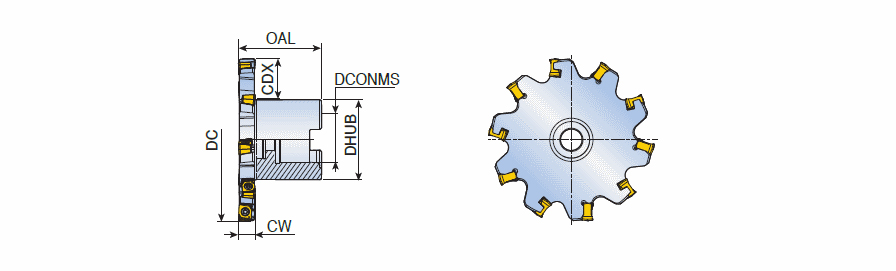

Cutting Diameter (DC): 125 mm
Overall Length (OAL): 50 mm
Peripheral Effective Cutting Edge Count (ZEFP): 6 Tooth
Application:, Bottom Shouldering, Side Slotting, T Slotting, Cutting Depth Maximum (CDX): 34 mm
Arbor Style: B
Connection Diameter Machine Side (DCONMS): 32 mm
Measurement Type: Metric
Hub Diameter (DHUB): 58 mm
Body Material: Steel
Cutting Width (CW): 20 mm
Unit: M
Flute Count (NOF): 12
