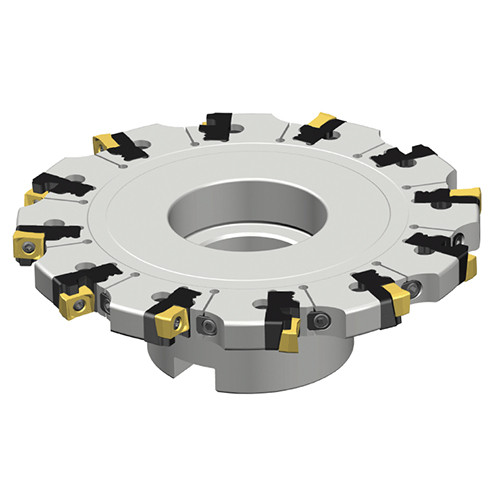

Adjustable slotting cutters with ZNHU inserts in flange type
Additional information
Weight
0.8900 kg
Dimensions
barcode
Additional Information
Cutting Diameter (DC): 125 mm
Flute Count (NOF): 10
Peripheral Effective Cutting Edge Count (ZEFP): 5 Tooth
Overall Length (OAL): 50 mm
Cutting Depth Maximum (CDX): 31.5 mm
Application:, Bottom Shouldering, Side Slotting, T Slotting, Connection Diameter Machine Side (DCONMS): 32 mm
Arbor Style: B
Hub Diameter (DHUB): 58 mm
Measurement Type: Metric
Cutting Width Maximum (CWX): 12 mm
Body Material: Steel
Cutting Width Minimum (CWN): 10 mm
Unit: M
