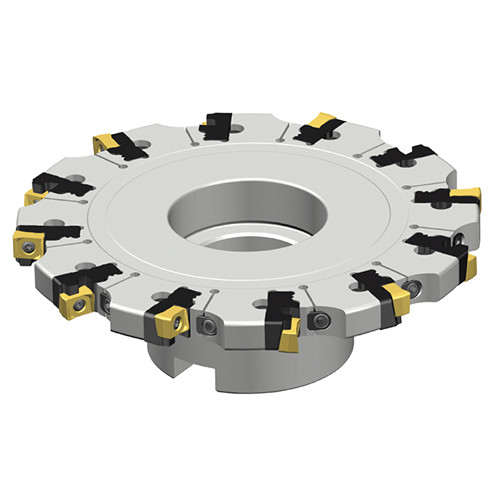

Adjustable slotting cutters with ZNHU inserts in flange type
Additional information
Weight
0.7000 kg
Dimensions
barcode
Additional Information

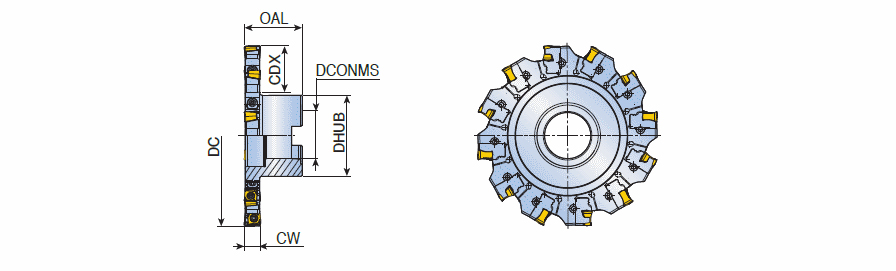

Cutting Diameter (DC): 125 mm
Flute Count (NOF): 8
Peripheral Effective Cutting Edge Count (ZEFP): 4 Tooth
Overall Length (OAL): 50 mm
Cutting Depth Maximum (CDX): 31.5 mm
Application:, Bottom Shouldering, Side Slotting, T Slotting, Connection Diameter Machine Side (DCONMS): 32 mm

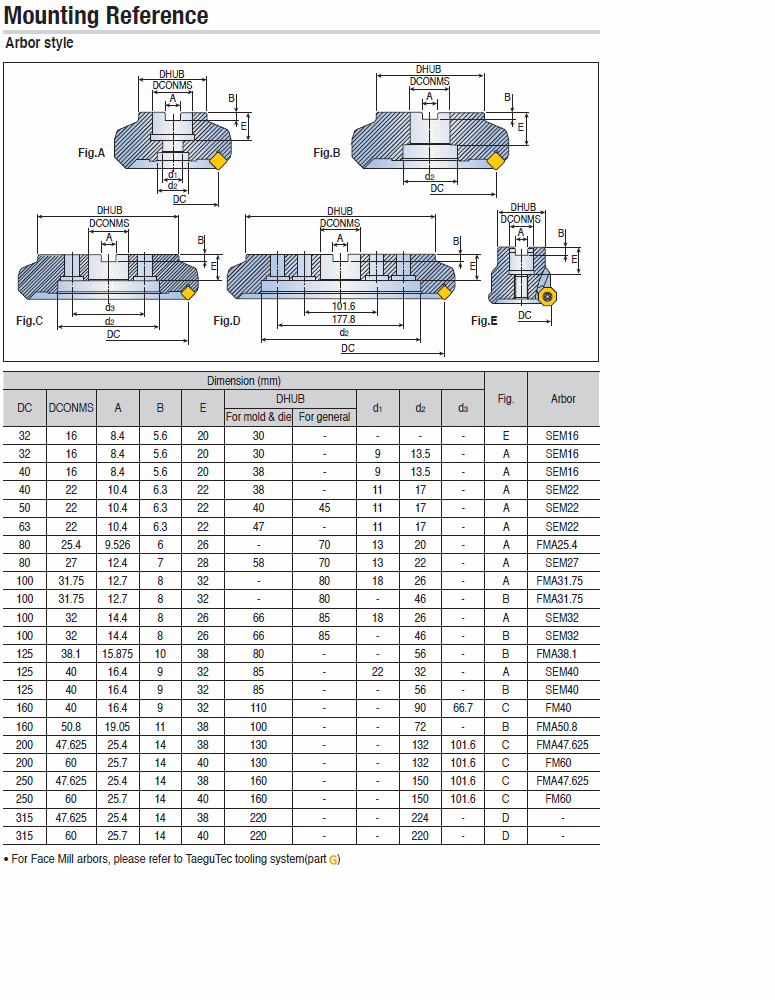

Arbor Style: B
Hub Diameter (DHUB): 58 mm
Measurement Type: Metric
Cutting Width Maximum (CWX): 20 mm
Body Material: Steel
Cutting Width Minimum (CWN): 17 mm
Unit: M
