Home » Shop » CUTTING TOOLS » Carbide » MILLING CUTTER » Taegutec TSM 160FD-S-40N-ZN14
$3,396.45$3,087.68 Ex. GST

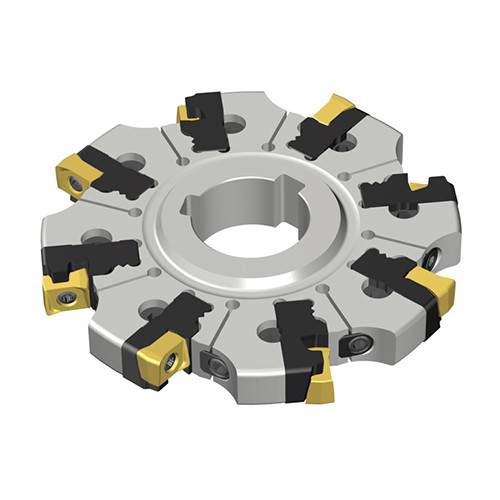

Adjustable slotting cutters with ZNHU inserts in disk type

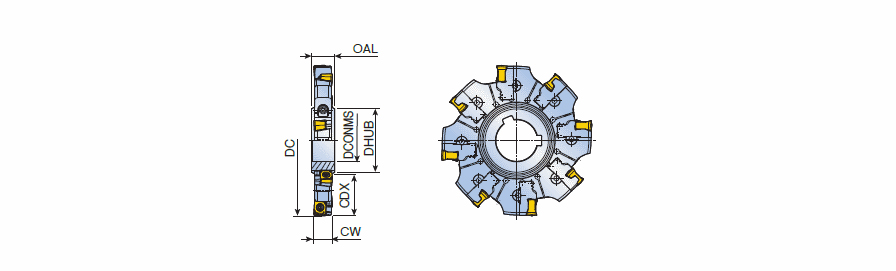

Cutting Diameter (DC): 160 mm Cutting Width Minimum (CWN): 20 mm Peripheral Effective Cutting Edge Count (ZEFP): 5 Tooth Flute Count (NOF): 10 Cutting Depth Maximum (CDX): 49 mm Application:, Bottom Shouldering, Side Slotting, Slitting, Connection Diameter Machine Side (DCONMS): 40 mm Measurement Type: Metric Hub Diameter (DHUB): 55 mm Body Material: Steel Hub Thickness (THUB): 24.5 mm Unit: M Cutting Width Maximum (CWX): 23 mm
