Home » Shop » CUTTING TOOLS » Carbide » MILLING CUTTER » Taegutec TSM 160FD-W-40N-ZN11
$3,503.27$3,184.79 Ex. GST

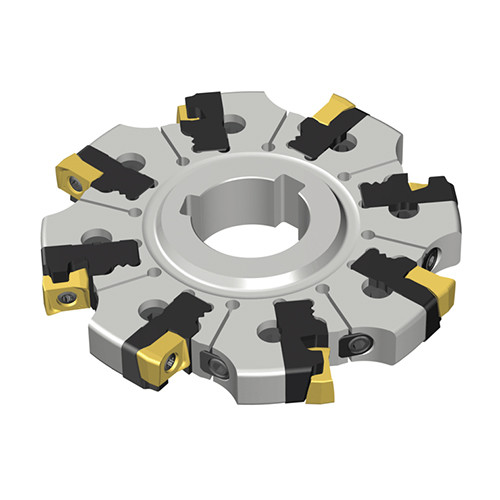

Adjustable slotting cutters with ZNHU inserts in disk type

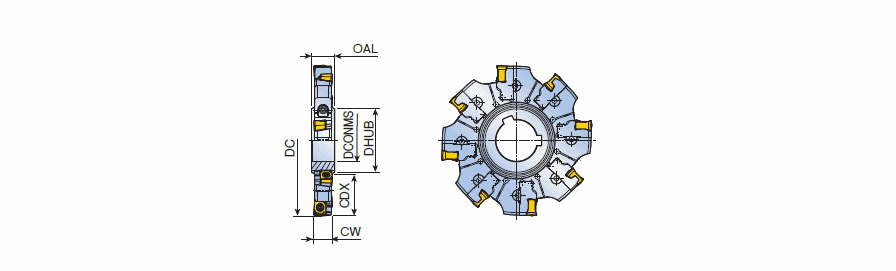

Cutting Diameter (DC): 160 mm Cutting Width Minimum (CWN): 17 mm Peripheral Effective Cutting Edge Count (ZEFP): 6 Tooth Flute Count (NOF): 12 Cutting Depth Maximum (CDX): 48.5 mm Application:, Bottom Shouldering, Side Slotting, Slitting, Connection Diameter Machine Side (DCONMS): 40 mm Measurement Type: Metric Hub Diameter (DHUB): 55 mm Body Material: Steel Hub Thickness (THUB): 22 mm Unit: M Cutting Width Maximum (CWX): 20 mm
