Home » Shop » CUTTING TOOLS » Carbide » MILLING CUTTER » Taegutec TSM 200FD-W-50N-ZN14
$4,378.53$3,980.48 Ex. GST

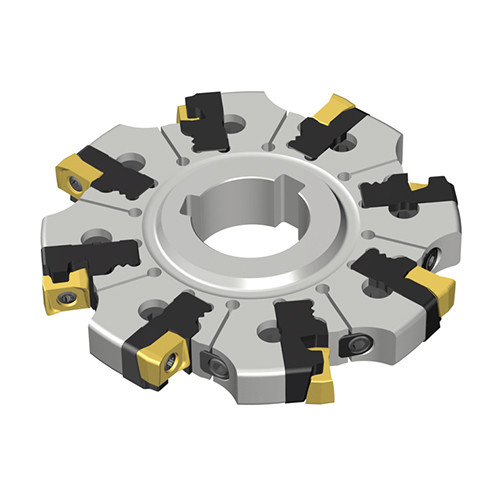

Adjustable slotting cutters with ZNHU inserts in disk type

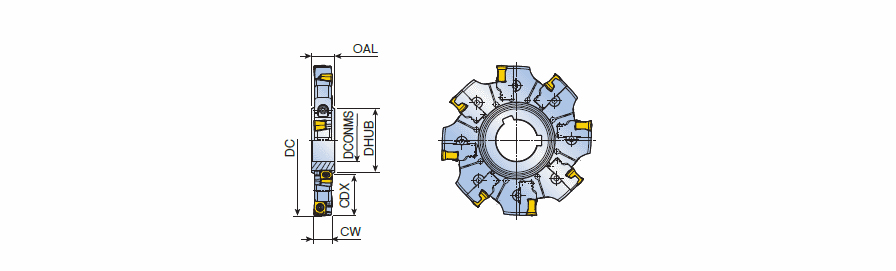

Cutting Diameter (DC): 200 mm Cutting Width Minimum (CWN): 23 mm Peripheral Effective Cutting Edge Count (ZEFP): 6 Tooth Flute Count (NOF): 12 Cutting Depth Maximum (CDX): 62.5 mm Application:, Bottom Shouldering, Side Slotting, Slitting, Connection Diameter Machine Side (DCONMS): 50 mm Measurement Type: Metric Hub Diameter (DHUB): 69 mm Body Material: Steel Hub Thickness (THUB): 27.5 mm Unit: M Cutting Width Maximum (CWX): 26 mm
