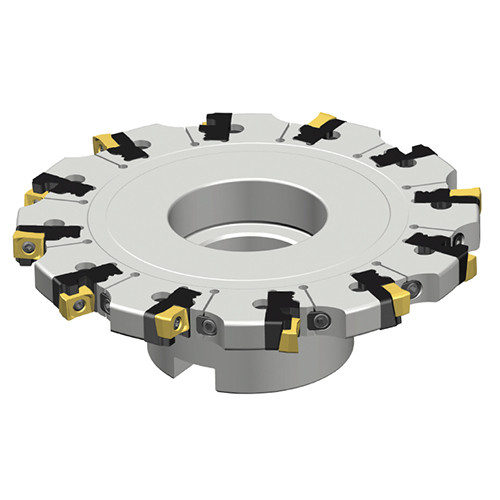

Adjustable slotting cutters with ZNHU inserts in flange type
Additional information
Weight
7.6900 kg
Dimensions
barcode
Additional Information

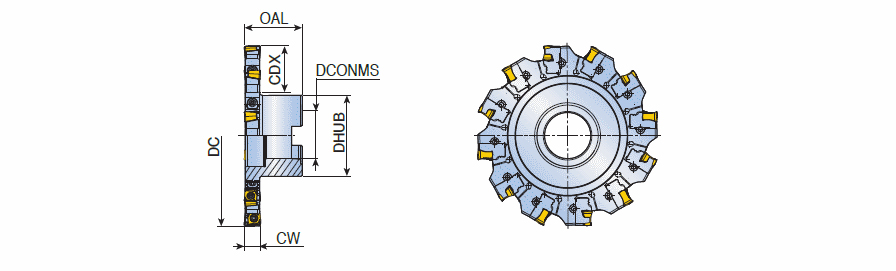

Cutting Diameter (DC): 250 mm
Flute Count (NOF): 16
Peripheral Effective Cutting Edge Count (ZEFP): 8 Tooth
Overall Length (OAL): 50 mm
Cutting Depth Maximum (CDX): 58 mm
Application:, Bottom Shouldering, Side Slotting, T Slotting, Connection Diameter Machine Side (DCONMS): 60 mm

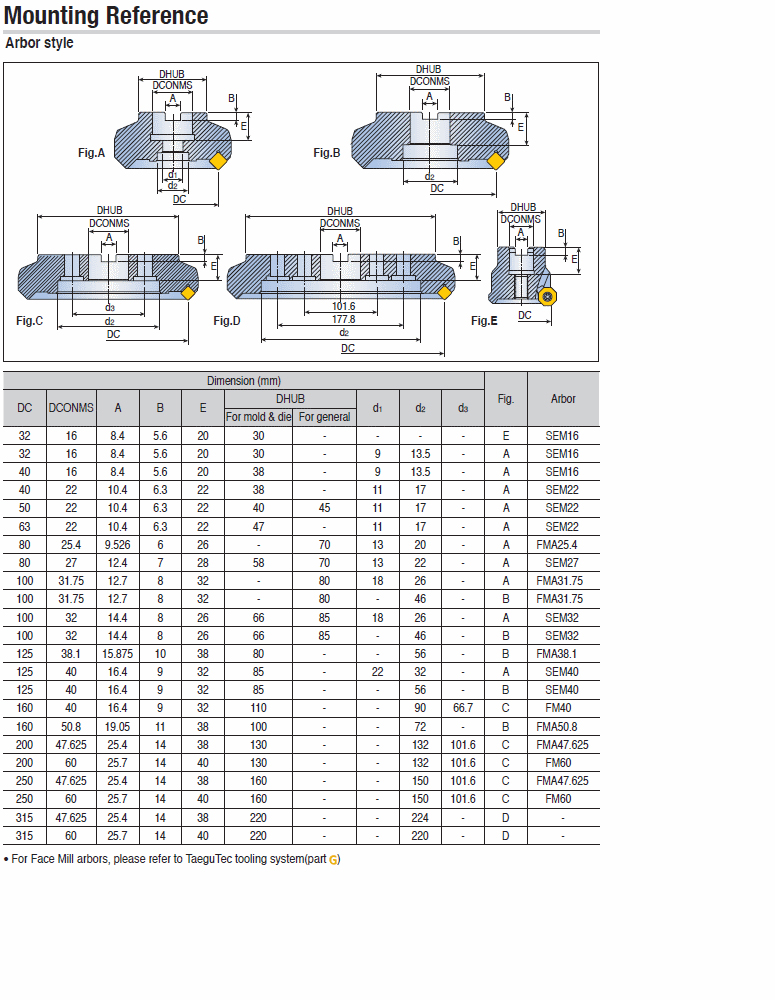

Arbor Style: B
Hub Diameter (DHUB): 130 mm
Measurement Type: Metric
Cutting Width Maximum (CWX): 26 mm
Body Material: Steel
Cutting Width Minimum (CWN): 23 mm
Unit: M
