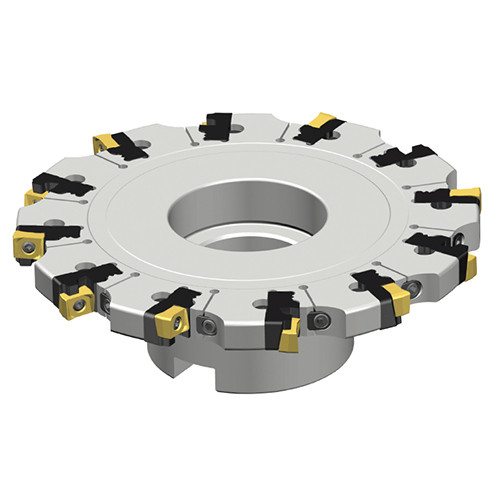

Adjustable slotting cutters with ZNHU inserts in flange type
Additional information
Weight
18.2550 kg
Dimensions
barcode
Additional Information

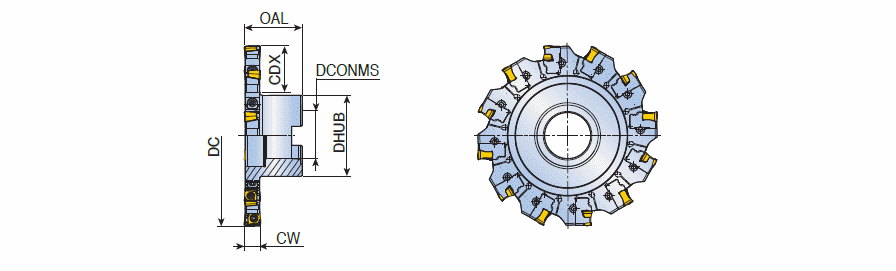

Cutting Diameter (DC): 315 mm
Flute Count (NOF): 20
Peripheral Effective Cutting Edge Count (ZEFP): 10 Tooth
Overall Length (OAL): 50 mm
Cutting Depth Maximum (CDX): 90 mm
Application:, Bottom Shouldering, Side Slotting, T Slotting, Connection Diameter Machine Side (DCONMS): 60 mm

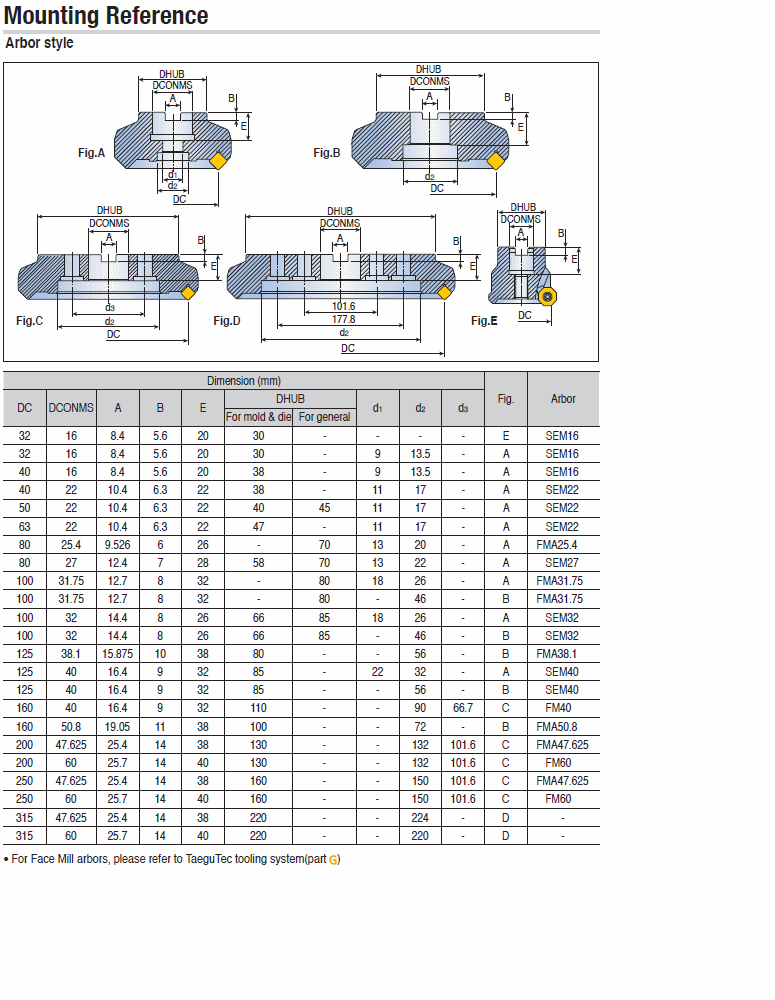

Arbor Style: C
Hub Diameter (DHUB): 130 mm
Measurement Type: Metric
Cutting Width Maximum (CWX): 26 mm
Body Material: Steel
Cutting Width Minimum (CWN): 23 mm
Unit: M
