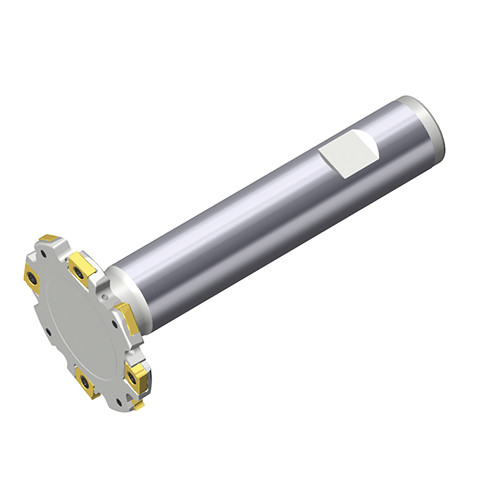

Taegutec TSM D25-06-W12-SL33

Product Code: 3112793

$788.15$716.50 Ex. GST

Product Code: 3112793 SKU 3112793 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Slotting and grooving end mills with SLOT slotting inserts

Additional information

Weight 0.1400 kg
Dimensions
barcode

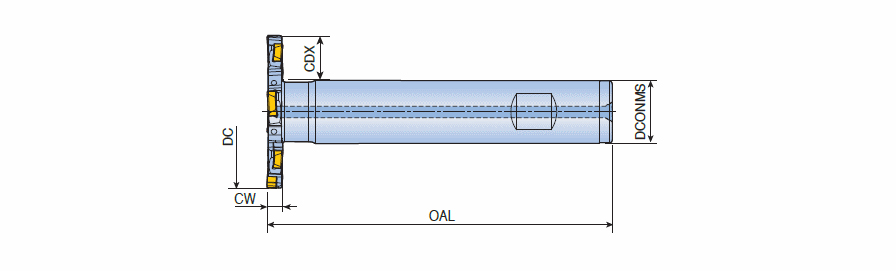

Additional Information

Cutting Diameter (DC): 25 mm
Overall Length (OAL): 90 mm
Cutting Width (CW): 6 mm
Application:, Bottom Shouldering, Internal Groove Milling, Side Slotting, T Slotting, Cutting Depth Maximum (CDX): 6.5 mm
Measurement Type: Metric
Flute Count (NOF): 2
Body Material: Steel
Peripheral Effective Cutting Edge Count (ZEFP): 1 Tooth
Unit: M
Connection Diameter Machine Side (DCONMS): 12 mm

Brand

Taegutec
