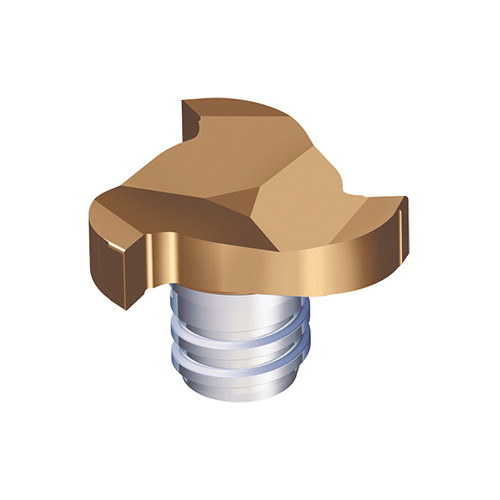

Taegutec ‎TST177W2.50R020-3S06 TT5543

Application:, Internal Groove Milling, Side Slotting, Solid Carbide End Mills, T Slotting, Grade: TT5543

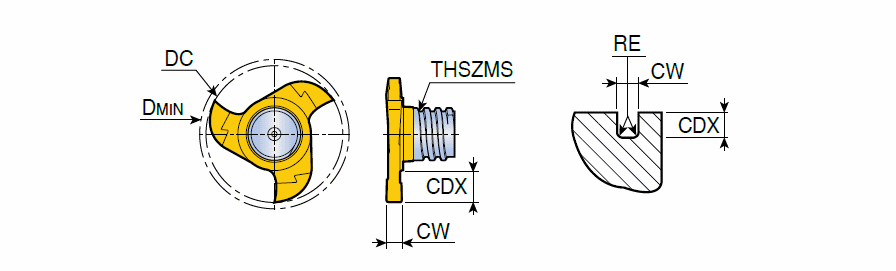

Cutting Diameter (DC): 17.7 mm
Coating: AlTiN
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Measurement Type: Metric
Flute Count (NOF): 3
Cutting Edge Material: Carbide
Corner Radius (RE): 0.2 mm
Minimum Bore Diameter (DMIN): 18 mm
Connection Thread Nominal Size Machine Side (THSZMS): S06
Protruding Length (LPR): 3.21 mm
Cutting Depth Maximum (CDX): 3.8 mm
Body Material: Carbide
Cutting Width (CW): 2.5 mm
Unit: M
Flute Helix Angle (FHA): 0 Degrees
