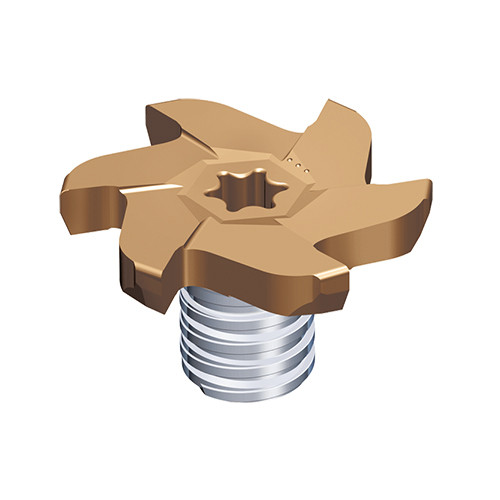

Taegutec ‎TST217W2.25R020-4S08 TT5543

Application:, Internal Groove Milling, Side Slotting, Solid Carbide End Mills, T Slotting, Grade: TT5543

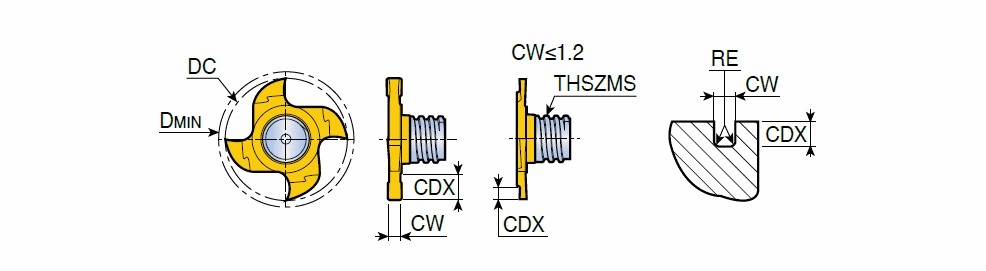

Cutting Diameter (DC): 21.7 mm
Coating: AlTiN
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Measurement Type: Metric
Flute Count (NOF): 4
Cutting Edge Material: Carbide
Corner Radius (RE): 0.2 mm
Minimum Bore Diameter (DMIN): 22 mm
Connection Thread Nominal Size Machine Side (THSZMS): S08
Protruding Length (LPR): 2.41 mm
Cutting Depth Maximum (CDX): 4.5 mm
Body Material: Carbide
Cutting Width (CW): 2.25 mm
Unit: M
Flute Helix Angle (FHA): 0 Degrees
