Taegutec ‎TST277W2.50R020-6S10 TT5543

Description

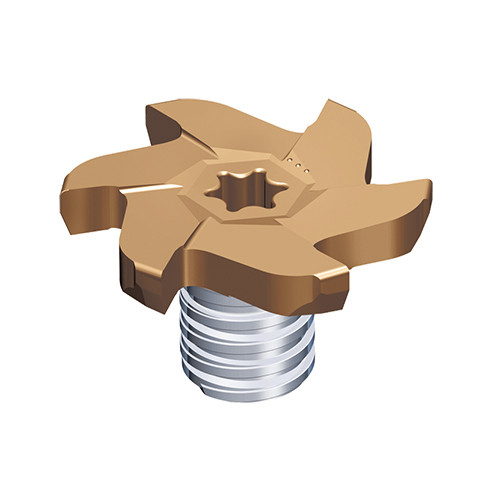

Interchangeable solid carbide small dia Slot milling heads for width 0.76 to 10 mm with 4 & 6 flute

Weight	0.0259 kg
barcode

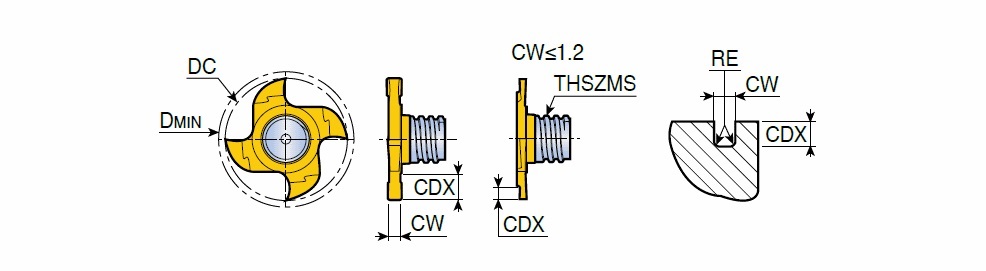

Additional Information	Application:, Internal Groove Milling, Side Slotting, Solid Carbide End Mills, T Slotting, Grade: TT5543 Cutting Diameter (DC): 27.7 mm Coating: AlTiN Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Measurement Type: Metric Flute Count (NOF): 6 Cutting Edge Material: Carbide Corner Radius (RE): 0.2 mm Minimum Bore Diameter (DMIN): 28 mm Connection Thread Nominal Size Machine Side (THSZMS): S10 Protruding Length (LPR): 3.05 mm Cutting Depth Maximum (CDX): 6 mm Body Material: Carbide Cutting Width (CW): 2.5 mm Unit: M Flute Helix Angle (FHA): 0 Degrees
