Taegutec ‎TTB165W3.0R04-06S06 TT5543

Product Code: 6231249

$116.62$106.02 Ex. GST

Product Code: 6231249 SKU 6231249 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

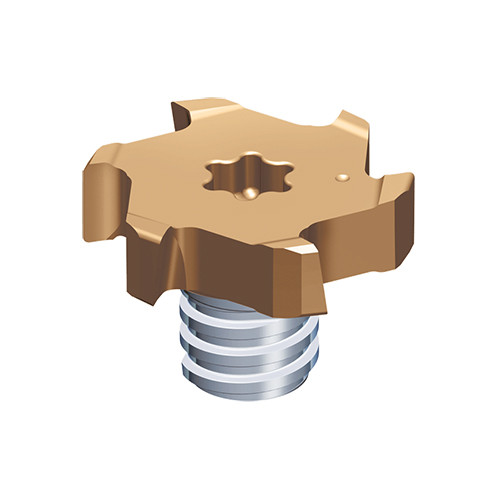

Interchangeable solid carbide small dia Slot milling heads of width 1.58 to 8.0 mm with 6 flute

Weight	0.0085 kg
barcode

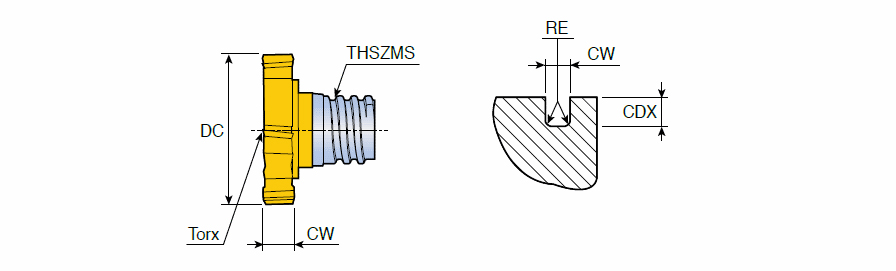

Additional Information	Application:, Internal Groove Milling, Side Slotting, Solid Carbide End Mills, T Slotting, Grade: TT5543 Cutting Diameter (DC): 16.5 mm Coating: AlTiN Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Measurement Type: Metric Flute Count (NOF): 6 Cutting Edge Material: Carbide Corner Radius (RE): 0.4 mm Protruding Length (LPR): 3.4 mm Connection Thread Nominal Size Machine Side (THSZMS): S06 Body Material: Carbide Cutting Depth Maximum (CDX): 3.15 mm Unit: M Cutting Width (CW): 3 mm
