Taegutec ‎TTB250W6.0R04-06S08 TT5543

Product Code: 6231258

$155.75$141.59 Ex. GST

Product Code: 6231258 SKU 6231258 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

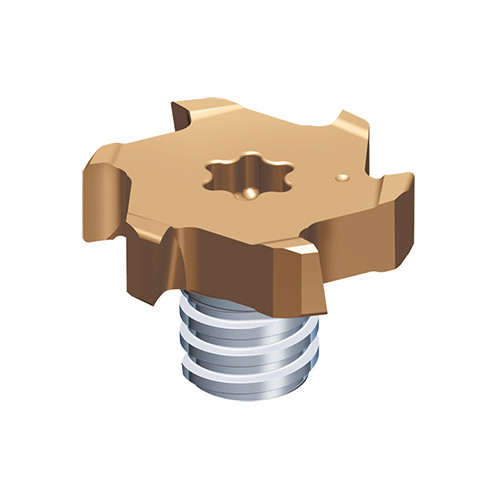

Interchangeable solid carbide small dia Slot milling heads of width 1.58 to 8.0 mm with 6 flute

Weight	0.0306 kg
barcode

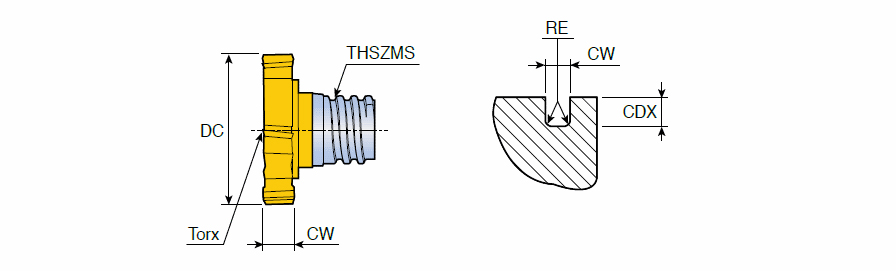

Additional Information	Application:, Internal Groove Milling, Side Slotting, Solid Carbide End Mills, T Slotting, Grade: TT5543 Cutting Diameter (DC): 25 mm Coating: AlTiN Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Measurement Type: Metric Flute Count (NOF): 6 Cutting Edge Material: Carbide Corner Radius (RE): 0.4 mm Protruding Length (LPR): 6.54 mm Connection Thread Nominal Size Machine Side (THSZMS): S08 Body Material: Carbide Cutting Depth Maximum (CDX): 5.9 mm Unit: M Cutting Width (CW): 6 mm
