Taegutec TTEL 2020-2T12-TB

Product Code: 6182900

$382.65$347.86 Ex. GST

Product Code: 6182900 SKU 6182900 Categories Carbide, CUTTING TOOLS (HSS & Carbide), TOOLHODER

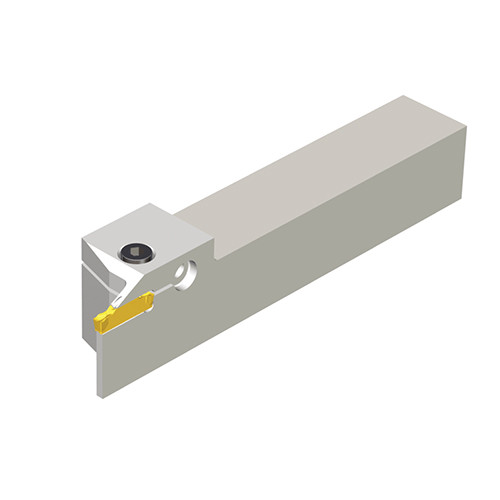

Taegutec TTEL 2020-2T12-TB

Taegutec TTEL 2020-2T12-TB - Image 2

Taegutec TTEL 2020-2T12-TB - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

External holders for turning, grooving and parting with high pressure coolant

Additional information

Weight	0.0850 kg
Dimensions
barcode
Additional Information	Cutting Depth Maximum (CDX): 12 mm Overall Length (OAL): 125 mm Shank Height (H): 20 mm Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Ext. Turning Aluminum Wheels, Parting, Shank Width (B): 20 mm Body Material: Steel Body Width (WB): 1.8 mm Measurement Type: Metric Functional Width (WF): 19.1 mm Unit: M Head Length (LH): 43 mm

Brand

Taegutec
