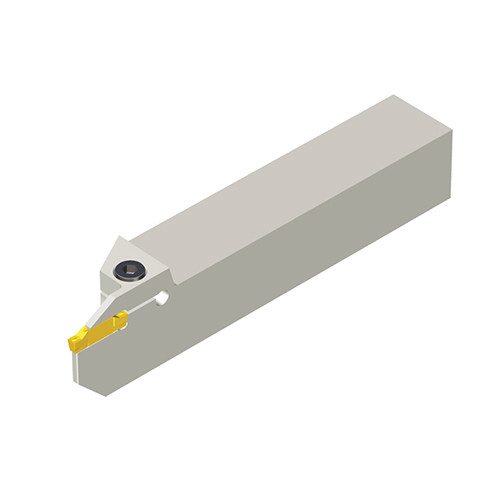

Reinforced external holders for turning, grooving & parting
Additional information
Weight
0.1350 kg
Dimensions
barcode
Additional Information

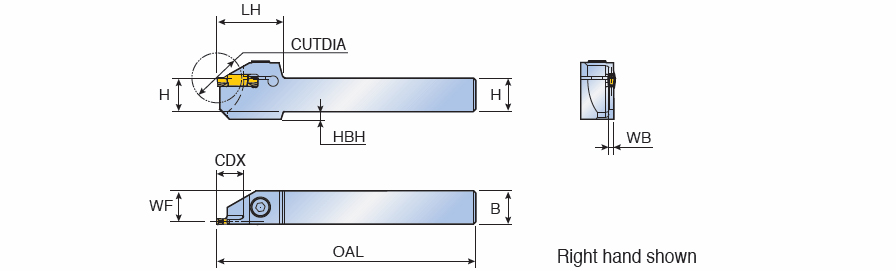

Cutting Diameter (DC): 40 mm
Overall Length (OAL): 125 mm
Cutting Depth Maximum (CDX): 15 mm
Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Parting, Tools for Swiss Machines, Shank Height (H): 10 mm
Body Material: Steel
Shank Width (B): 25 mm
Measurement Type: Metric
Functional Width (WF): 9.5 mm
Unit: M
Head Length (LH): 32 mm
