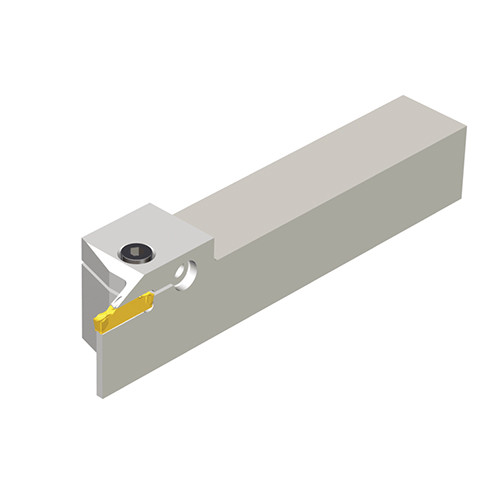

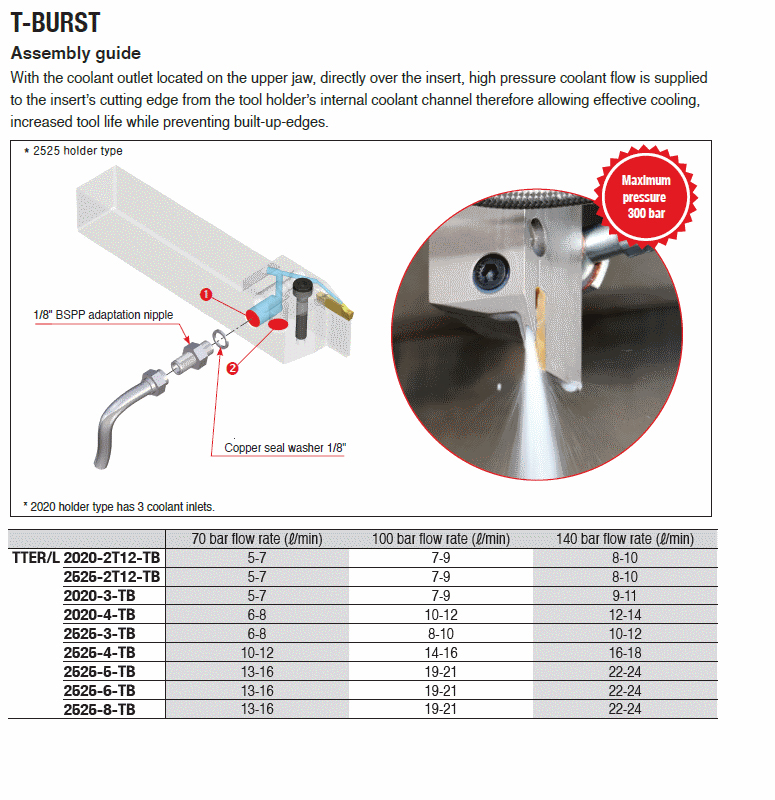

External holders for turning, grooving and parting with high pressure coolant
Additional information
Weight
0.3900 kg
Dimensions
barcode
Additional Information

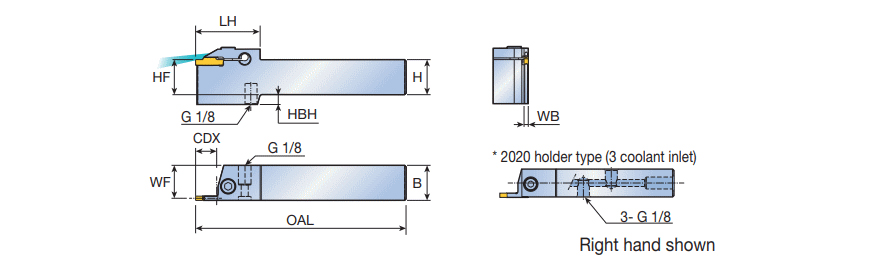

Cutting Depth Maximum (CDX): 15 mm
Overall Length (OAL): 125 mm
Shank Height (H): 20 mm
Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Ext. Turning Aluminum Wheels, Parting, Shank Width (B): 20 mm
Body Material: Steel
Body Width (WB): 3 mm
Measurement Type: Metric
Functional Width (WF): 18.5 mm
Unit: M
Head Length (LH): 46 mm
