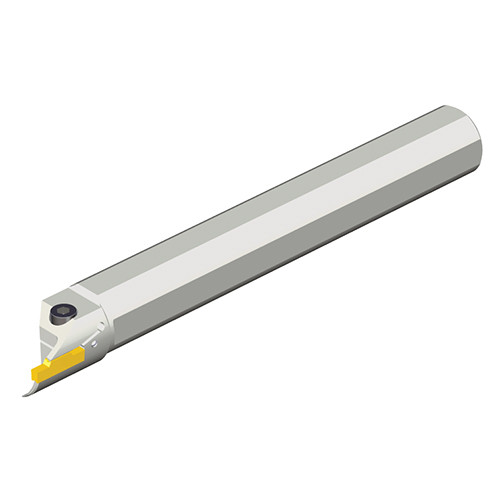

Boring bars with coolant holes for internal face grooving & face turning
Additional information
Weight
1.4600 kg
Dimensions
barcode
Additional Information

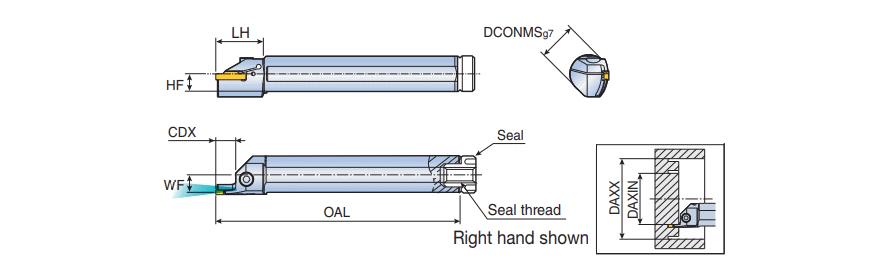

Cutting Depth Maximum (CDX): 12 mm
Axial Groove Outside Diameter Minimum (DAXN): 180 mm
Shank Width (B): 15 mm
Axial Groove Outside Diameter Maximum (DAXX): 92 mm
Functional Width (WF): 14.5 mm
Body Material: Steel
Head Length (LH): 31 mm
Measurement Type: Metric
Overall Length (OAL): 250 mm
Unit: M
Application:, Int. Face Grooving, Int. Face Grooving & Turning, Tools for Swiss Machines
