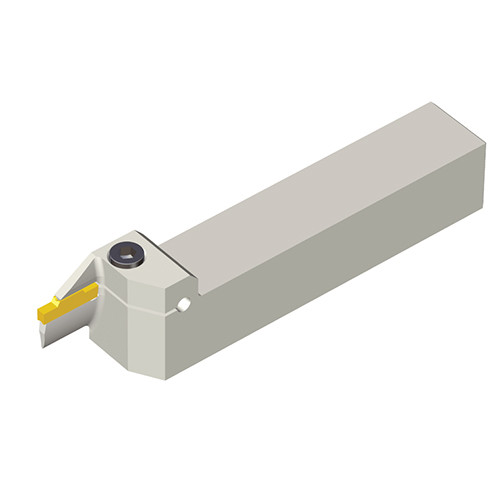

External holders for face grooving & turning along shaft
Additional information
Weight
0.8500 kg
Dimensions
barcode
Additional Information

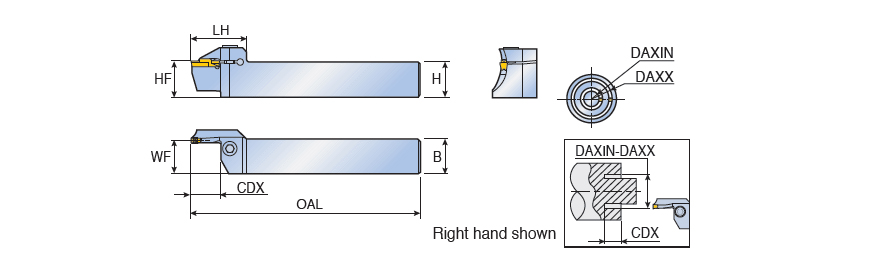

Shank Width (B): 25 mm
Application:, Face Grooving, Face Grooving & Turning, Face Grooving Along Shaft, Shank Height (H): 25 mm
Head Length (LH): 41 mm
Cutting Depth Maximum (CDX): 15 mm
Master Insert Identification (MIID): ‎TDXU 5E-0.4
Axial Groove Outside Diameter Maximum (DAXX): 110 mm
Body Material: Steel
Axial Groove Outside Diameter Minimum (DAXN): 70 mm
Measurement Type: Metric
Overall Length (OAL): 150 mm
Unit: M
