Taegutec TTFR 25-150-6

Product Code: 2800104

$269.19$244.72 Ex. GST

Product Code: 2800104 SKU 2800104 Categories Carbide, CUTTING TOOLS (HSS & Carbide), TOOLHODER

Taegutec TTFR 25-150-6

Taegutec TTFR 25-150-6 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

External holders for face grooving and turning

Additional information

Weight	0.7500 kg
Dimensions
barcode

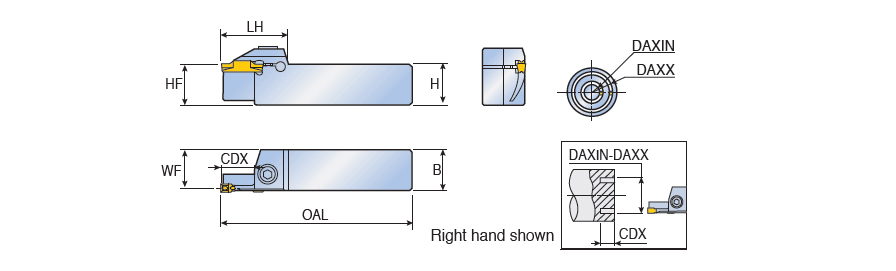

Additional Information	Shank Width (B): 25 mm Application:, Face Grooving, Face Grooving & Turning, Shank Height (H): 25 mm Head Length (LH): 41 mm Cutting Depth Maximum (CDX): 20 mm Master Insert Identification (MIID): ‎TDXU 6E-0.4 Axial Groove Outside Diameter Maximum (DAXX): 250 mm Body Material: Steel Axial Groove Outside Diameter Minimum (DAXN): 138 mm Measurement Type: Metric Overall Length (OAL): 150 mm Unit: M

Brand

Taegutec
