Taegutec TTFR 25-200-4 RN

Product Code: 2801379

$269.19$244.72 Ex. GST

Product Code: 2801379 SKU 2801379 Categories Carbide, CUTTING TOOLS (HSS & Carbide), TOOLHODER

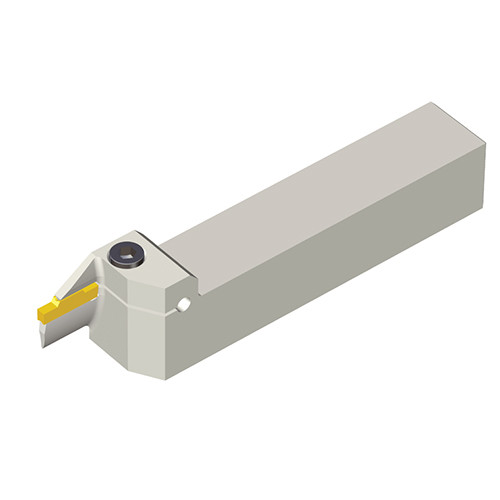

Taegutec TTFR 25-200-4 RN

Taegutec TTFR 25-200-4 RN - Image 2

Taegutec TTFR 25-200-4 RN - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

External holders for face grooving & turning along shaft

Additional information

Weight	0.6900 kg
Dimensions
barcode

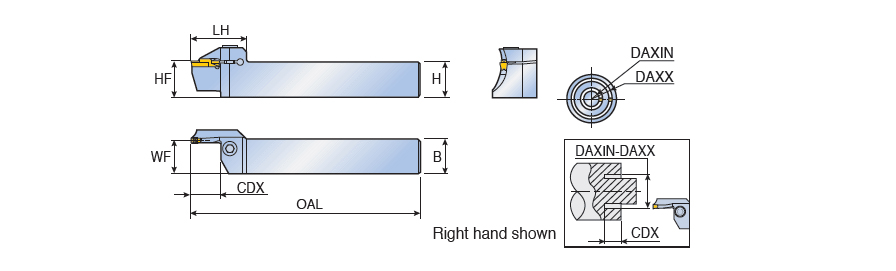

Additional Information	Shank Width (B): 25 mm Application:, Face Grooving, Face Grooving & Turning, Face Grooving Along Shaft, Shank Height (H): 25 mm Head Length (LH): 39 mm Cutting Depth Maximum (CDX): 20 mm Master Insert Identification (MIID): ‎TDXU 4E-0.4 Axial Groove Outside Diameter Maximum (DAXX): – Body Material: Steel Axial Groove Outside Diameter Minimum (DAXN): 200 mm Measurement Type: Metric Overall Length (OAL): 150 mm Unit: M

Brand

Taegutec
