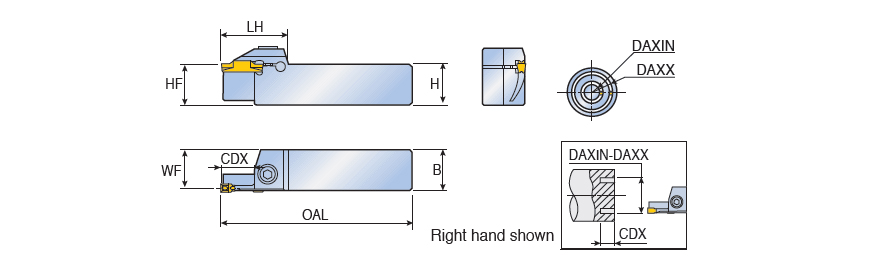

Shank Width (B): 25 mm
Application:, Face Grooving, Face Grooving & Turning, Shank Height (H): 25 mm
Head Length (LH): 41 mm
Cutting Depth Maximum (CDX): 20 mm
Master Insert Identification (MIID): ‎TDXU 6E-0.4
Axial Groove Outside Diameter Maximum (DAXX): –
Body Material: Steel
Axial Groove Outside Diameter Minimum (DAXN): 250 mm
Measurement Type: Metric
Overall Length (OAL): 150 mm
Unit: M
