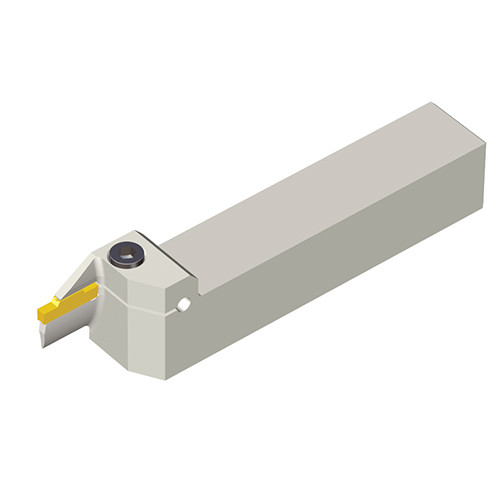

External holders for face grooving & turning along shaft
Additional information
Weight
0.7500 kg
Dimensions
barcode
Additional Information

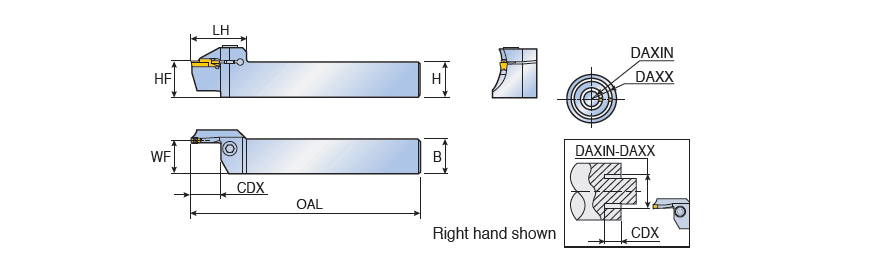

Shank Width (B): 25 mm
Application:, Face Grooving, Face Grooving & Turning, Face Grooving Along Shaft, Shank Height (H): 25 mm
Head Length (LH): 35 mm
Cutting Depth Maximum (CDX): 10 mm
Master Insert Identification (MIID): ‎TDXU 3E-0.3
Axial Groove Outside Diameter Maximum (DAXX): 40 mm
Body Material: Steel
Axial Groove Outside Diameter Minimum (DAXN): 29 mm
Measurement Type: Metric
Overall Length (OAL): 150 mm
Unit: M
