Boring bars without coolant hole for internal grooving & turning
Additional information
Weight
0.7280 kg
Dimensions
barcode
Additional Information

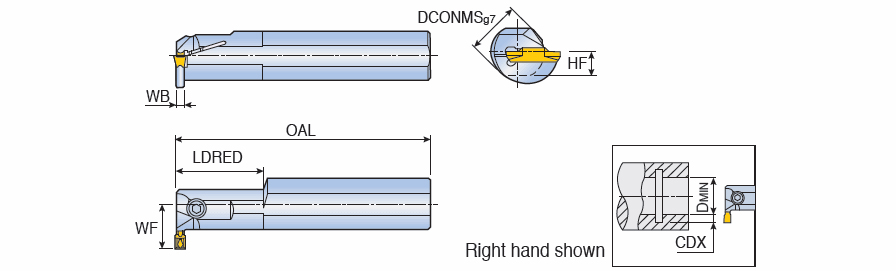

Cutting Depth Maximum (CDX): 5.1 mm
Overall Length (OAL): 200 mm
Shank Width (B): 11.5 mm

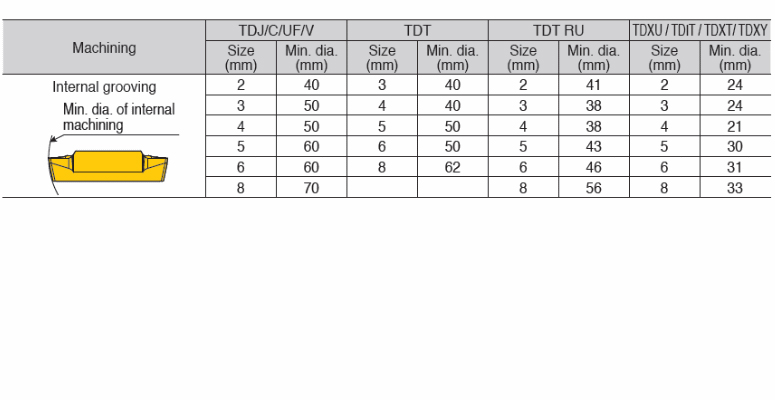

Application:, Int. Groove & Turn, Int. Grooving, Int. Profiling, Minimum Bore Diameter (DMIN): 25 mm
Body Material: Steel
Functional Width (WF): 17.5 mm
Measurement Type: Metric
Head Length (LH): 40 mm
Unit: M
